miniDSP is proud to introduce the SHD (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. A natural evolution and extension of our considerable experience with Dirac Live implementation, the miniDSP SHD heralds a new era in affordable yet powerful DSP-based network streamers. First and foremost, the SHD is a stereo Dirac Live room correction processor. Three digital inputs, two analog inputs and USB Audio enable the SHD to fit right into any modern audio system, while processed outputs are available as unbalanced and balanced analog as well as digital. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to use calibration tool. We have also added network streaming over Ethernet, using a dedicated quad-core ARM processor. Out of the gate, we are shipping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. Finally, we’ve added a second pair of outputs and a suite of our powerful but user-friendly DSP audio tuning software - ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2x4 matrix mixer — for powerful audio system tuning in applications ranging from integrating a single subwoofer to a two-way active speaker. Features Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP 32bit Audiophile converters: AK5574 / AK4490EQ  Powered by Dirac Live® 3.x Digital Room Correction Quad core ARM processor for network audio streaming - Preloaded with Volumio Inputs: Stereo digital (USB Audio/AES-EBU/SPDIF/Optical), stereo analog (Balanced XLR, unbalanced RCA) Outputs: 4 x digital (SPDIF out), 4 x analog out (Balanced XLR, unbalanced RCA) USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl) White/Black OLED front panel controller What's in the box? Dirac Series Audio Processor — SHD DSP USB Wifi 2.4GHz adaptor Dirac Live 3.x license for full range correction (20Hz~20kHz) IR remote v2 IEC power plug (UK/EU/US) Rack mounting kit (standard 1RU) NOTE: The Dirac Live Calibration Tools for miniDSP software is only compatible with the UMIK-1/UMIK-2 microphone for measurement.

miniDSP is proud to introduce the SHD Studio (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. While physically the SHD Studio is the “baby brother” of the full-featured SHD — accomplished by removing the analog I/O connectors and circuitry — internally it packs the same powerful audio processing capabilities. First and foremost, the SHD is a stereo Dirac Live room correction processor. The SHD fits right into any digital processing path, with AES/EBU, SPDIF, optical and USB audio inputs, and four output channels on both SPDIF and AES/EBU. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to-use calibration tool. We have also included network streaming over Ethernet, using a dedicated quad-core ARM processor. Out of the gate, we are shipping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. The SHD Studio includes a suite of our powerful but user-friendly DSP audio tuning software - ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2x4 matrix mixer. Applications range from integrating a single subwoofer to a two-way active speaker. Outputs 3 and 4 also drive the headphone jack on the front panel for a uniquely flexible digital processing solution. Features Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP Powered by Dirac Live® 3.x  Digital Room Correction Quad core ARM processor for network audio streaming - Preloaded with Volumio Inputs: Stereo digital channels (USB Audio/AES-EBU/SPDIF/Optical) Outputs: Dual Stereo digital channels (2 x stereo SPDIF RCA outputs and 2 x stereo AES-EBU Balanced XLR) / Headphone amplifier USB audio recording feature (4xCH processed output via USB audio to record inputs) White/Black OLED front panel controller What's in the box? SHD Studio processor with embedded Dirac Live 2.0 license USB Wifi 2.4GHz adaptor Dirac Live v3.x license for full range correction (20Hz~20kHz) IR remote v2 External universal power supply NOTE: The Dirac Live Calibration Tools for miniDSP software is only compatible with the UMIK-1/UMIK-2 microphone for measurement.

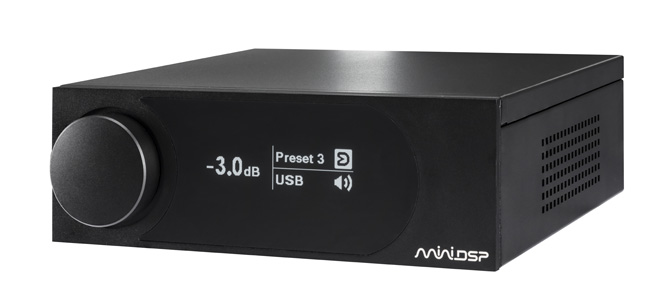

miniDSP is proud to introduce the latest member of the SHD (“Streaming High Definition”) processor family. As with all SHD Series processors, the SHD Power includes Dirac Live®, the world’s premier room correction so-lution, and a full suite of miniDSP’s powerful but user-friendly audio tun-ing software. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to-use calibration tool. The SHD Power includes a 120W per channel low-distortion power amplifier for powering main speakers, and two additional analog outputs for connecting a subwoofer or subwoofers. With three digital inputs and high-resolution USB Audio, the SHD Power is the ideal modern integrated am-plifier, all packed into an unbelievably compact  metal enclosure. We have also included network streaming over Ethernet or Wi-Fi, powered by a dedicated quad-core ARM processor. Out of the gate, we are ship-ping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. Hardware Features Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP 32bit Audiophile converters Proprietary custom 2 x 120W amplifier (8Ohms/4Ohms), SNR >110dB (at 1kHz A-weighted, 120W in 8Ω),  Embedded PCM1795 DAC chipset + TPA3255 Class D chipset Powered by Dirac Live® 3.x Digital Room Correction Quad core ARM processor for network audio streaming - Preloaded with Volumio Inputs: Stereo digital (USB Audio/AES-EBU/SPDIF/Optical) Outputs: 2 x 120W amplifier output , 2 x analog out (Unbalanced RCA), 4 x digital AES-EBU USB audio recording feature (4xCH processed output via USB audio to record digital inputs) White/Black OLED front panel controller   What's in the box? Dirac Series Audio Processor — SHD Power USB Wifi 2.4GHz adaptor Dirac Live license 3.x  for miniDSP - Full Range correction IR remote v2 IEC power plug (UK/EU/US) NOTE: The Dirac Live Calibration Tools for miniDSP software is only compatible with the UMIK-1/UMIK-2 microphone for measurement.
