Cabinet Ultimax 15CB Kit
€37.00
Ultimax 15 CB Case Kit
Ultimax 15 CB Case Kit
Suitable for assembly:Dayton Audio UM15-22 or UMII15-22
92L Flat Pack Enclosure Kit
About the Case

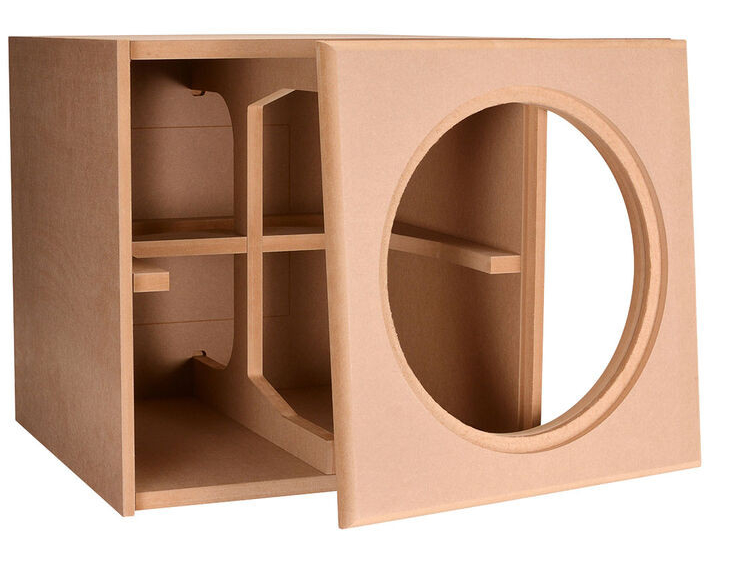

This clever enclosure was specifically designed for the Dayton Audio 15" Ultimax subwoofer.
During the CNC manufacturing process, grooves and joints are cut into the back panel to assemble the plates
precisely align. A unique two-part strut provides superior stiffness without
Performance of the subwoofer. Both side walls feature 19mm folded extensions
with cutouts to perfectly mount the first piece of the two-part, double-thick baffle.
The final result is a resonance-free, closed subwoofer enclosure that has been specifically designed to
to get the best performance out of the 15" Ultimax subwoofer from Dayton Audio. All that remains to be done
remains to refine it to match your decor or to paint it to stand out.
Spezifikationen:- Panel thickness: 19mm, baffle 38mm - Panel material: Medium Density Fiberboard (MDF) -
Finished net cabinet volume (excluding the double thick baffle, bracing, and the
Low frequency volume: 92L - External dimensions: 490mm H x 496.0mm W x 510mm D - Weight: 28kg
Attention please note and for change requests please use the comment field or send change requests via email.
address:
In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminal
T105 on the back of the housing, prefabricated!
All enclosure kits (not glued or painted) come without rounded edges or chamfers!
Chamfers or rounds are only made on fully assembled housings.
