Scan-Speak 32W/4878T00
Scan-Speak 32W/4878T00The 32W/4878T00 is the most powerful subwoofer designed by Scan-speak to this date, with its large 3”voice coil, extreme linear excursion and low resonance frequency is it perfect to reproduce the deepestfrequencies. It features a brand new type of paper-sandwich cone with a special foam filling technology(patented) that gives the cone very high stiffness and relatively low weight. The motor system has heavyduty copper sleeves for reducing eddy currents and minimizing self-induction. - Paper sandwich cone with patented foam filling- Extreme linear excursion (+/-14 mm)- Patentierter Symmetrical Drive Motor- 3" voice coil, titanium former and paper reinforced- Spider with balanced woven in tinsel leads- Stiff and strong die cast aluminum chassis

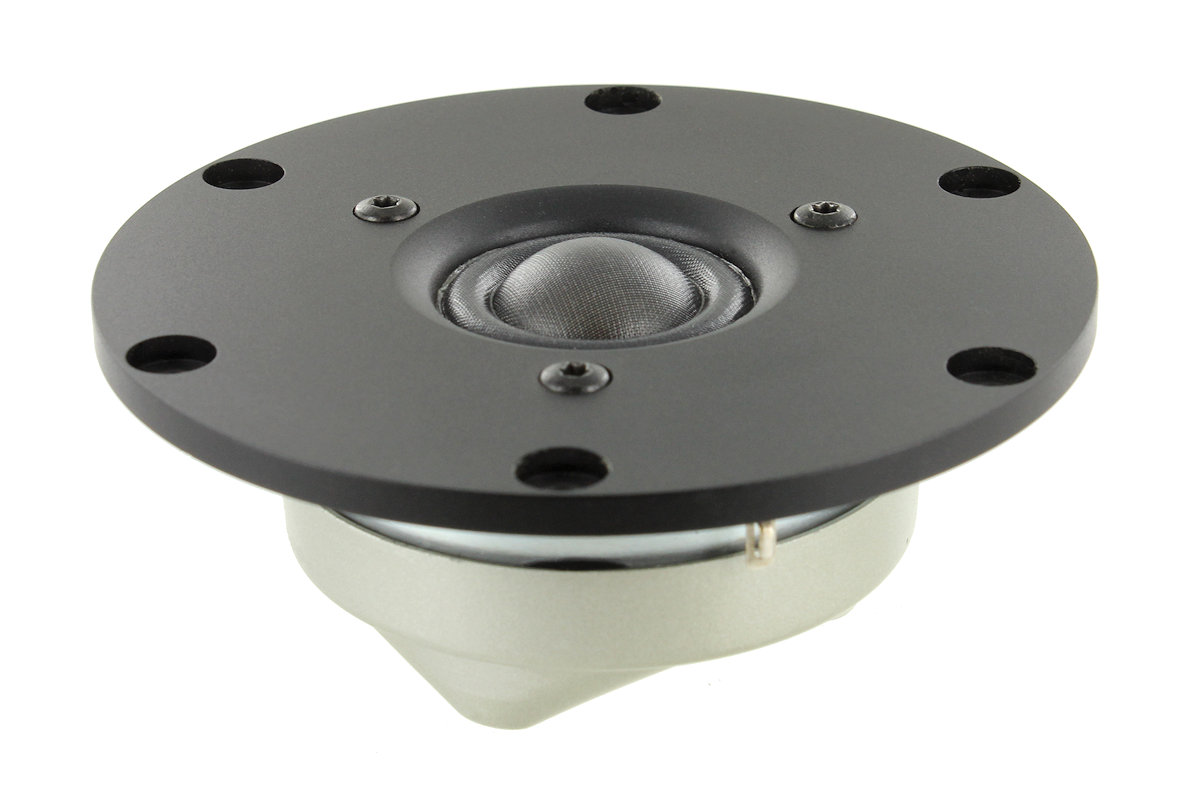

Scan-Speak D2104/712000
Scan-Speak D2104/712000The large roll surround technology of the Revelator Tweeters represents a breakthrough in overallperformance, with outstanding off-axis response, high output capability and low resonance frequency. Alarge neodymium magnet system for high sensitivity is part of the design. Additional enhancements havebeen made to reduce distortion and dynamic compression, such as a careful design to optimize airflow inthe chambers. - Patented Symmetrical Drive (SD-2) motor- Neodymium ring magnet system with double vent.- High frequency extension beyond 40kHz- Coated textile diaphragm w. large roll Surround- Back chamber with high consistency felt pads- Anodized Machined Alu Face Plate

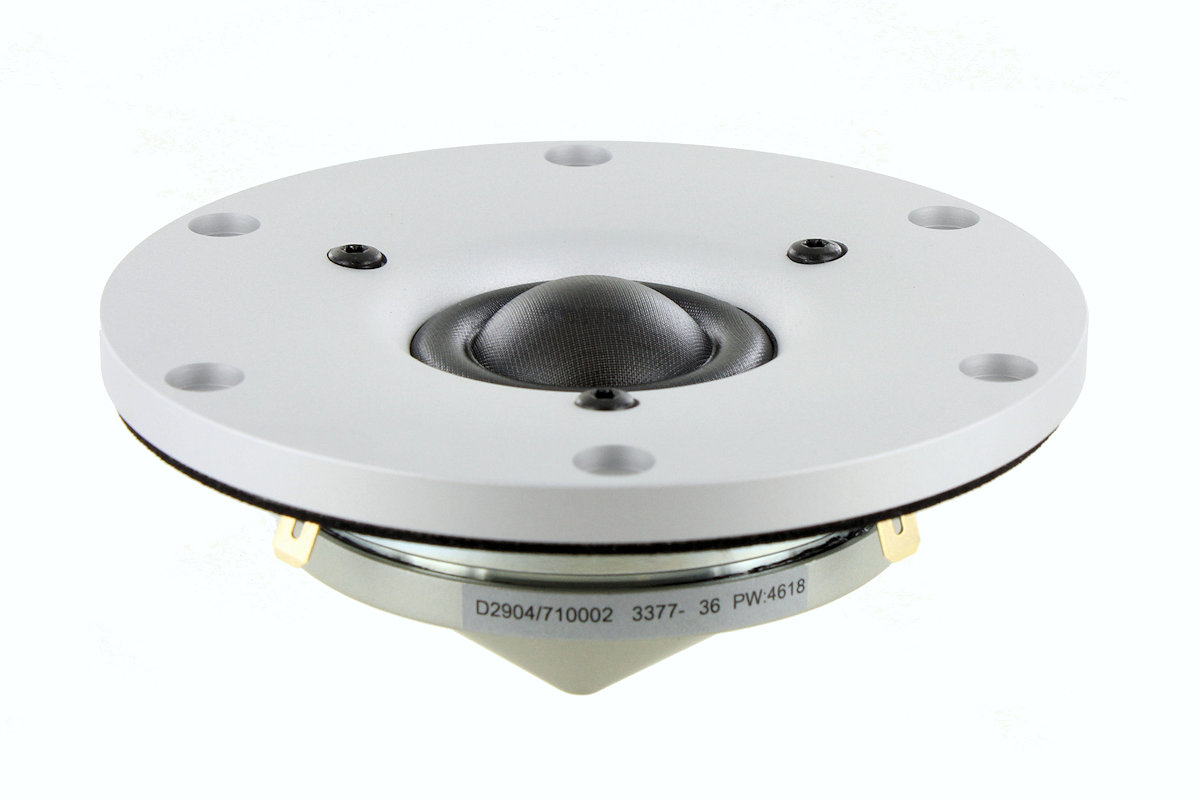

Scan-Speak D2904/710002
Scan-Speak D2904/710002The Revelator Tweeters large roll surround technology represents a breakthrough in overall performance,with outstanding off-axis response, high output capability and low resonance frequency. Additional<p>Verbesserungen wurden vorgenommen, um Verzerrungen und Leistungsverluste zu reduzieren, wie zum Beispiel ein großer Neodym-Magnet.</p>Systeme für hohe Empfindlichkeit und ein sorgfältiges Design zur Optimierung des Luftstroms in den Kammern. - 1" Coated Textile Diaphragm- Large Roll Surround for Wide Dispersion- Patented Symmetrical Drive (SD-2) motor- Large Ring Neo Magnet f. High Output- Non-resonant aluminum rear chamber- Silver Anodized Machined Alu Face Plate

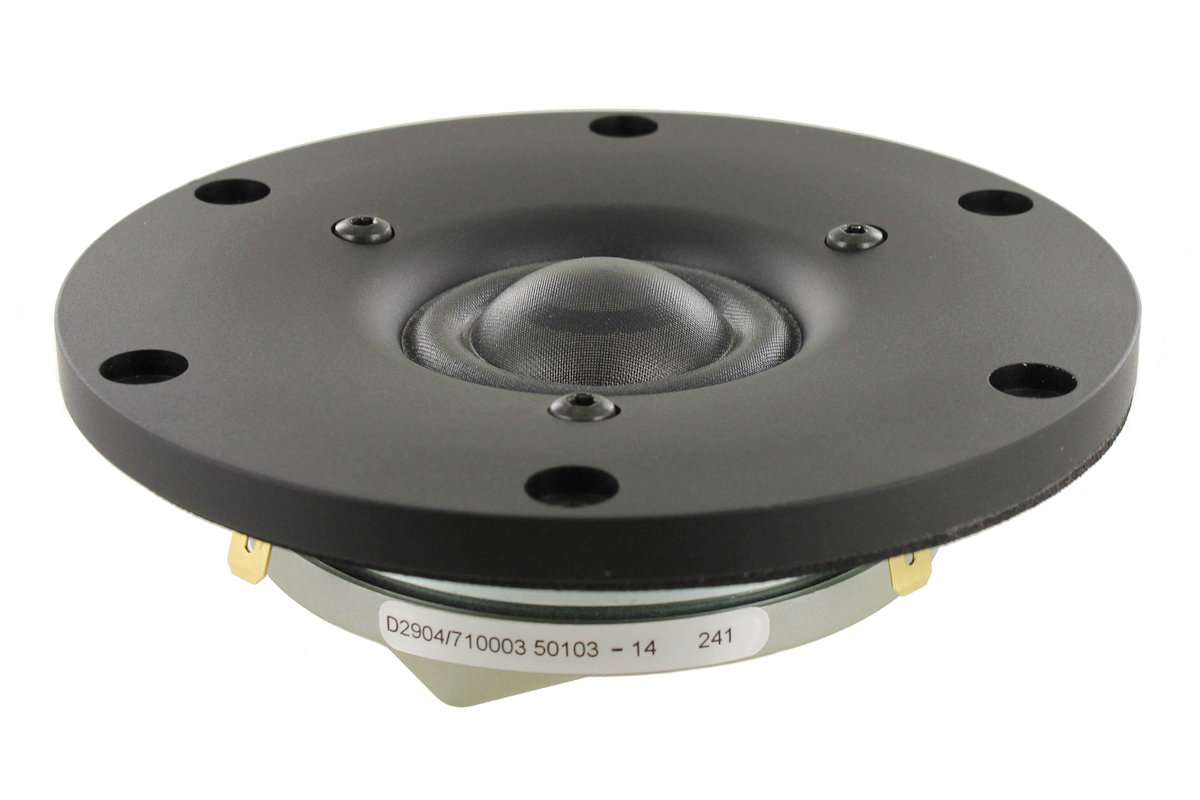

Scan-Speak D2904/710003
Scan-Speak D2904/710003The Revelator Tweeters large roll surround technology represents a breakthrough in overall performance,with outstanding off-axis response, high output capability and low resonance frequency. Additionalenhancements have been made to reduce distortion and power compression, such as large neodymium magnetSysteme für hohe Empfindlichkeit und ein sorgfältiges Design zur Optimierung des Luftstroms in den Kammern. - 1" Coated Textile Diaphragm- Large Roll Surround for Wide Dispersion- Patented Symmetrical Drive (SD-2) motor- Large Ring Neo Magnet f. High Output- Non-resonant aluminum rear chamber- Black Anodized Machined Alu Face Plate

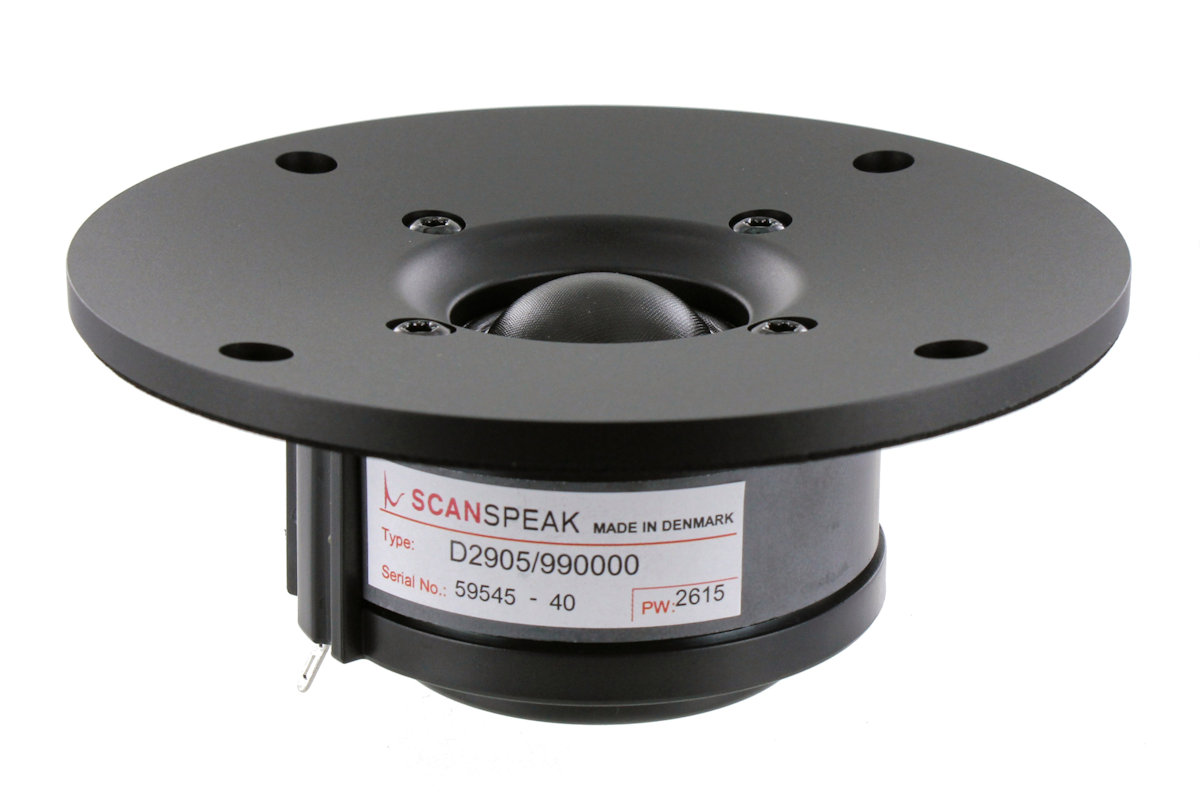

Scan-Speak D2905/990000
Scan-Speak D2905/990000D2905/990000 – The original Revelator tweeter – is built on the heritage of our successful Classictweeters, continuing with Symmetrical Drive (SD-2) motor design which includes copper caps, the nonresonant chamber and the special treated textile 29mm dome and further optimized optimized for theultimately performance utilizing a large machined aluminum wave guide front. - Exzellente Klangwiedergabe- 1" Textile Dome Diaphragm- Patented Symmetrical Drive (SD-2) motor- Wide Surround Textile Diaphragm- Große Wellenführung Vorne- Black Anodized Machined Alu Face Plate

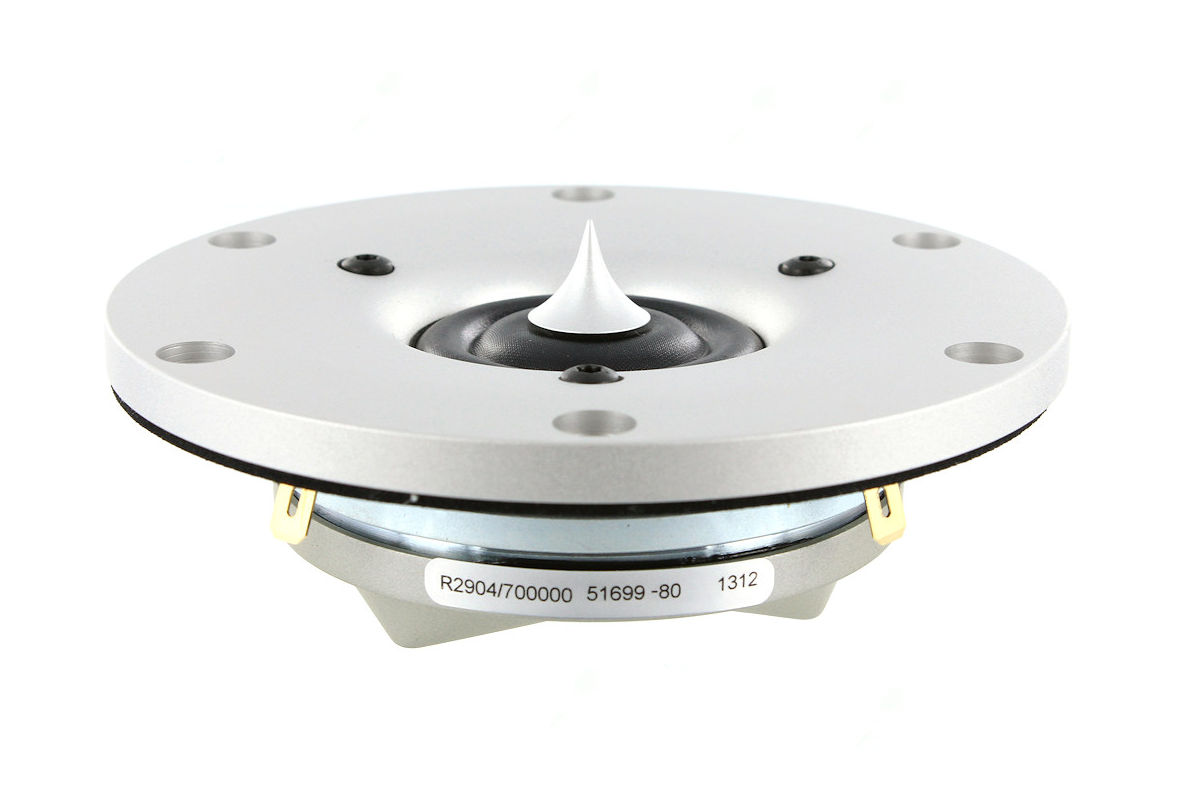

Scan-Speak R2904/700000
Scan-Speak R2904/700000The Revelator tweeter series consist of the revolutionary ring radiator design, which put an end to someof the design trade-offs in dome designs. The ring radiator still offers unrivaled performance.Zusätzliche Verbesserungen wurden vorgenommen, um Verzerrungen und Leistungsverluste zu reduzieren, wie zum Beispiel großeneodymium magnet systems for high sensitivity, and a careful design to optimize airflow in the chambers. - 1" ring dome diaphragm- Patented Phase Plug Design- Patented Symmetrical Drive (SD-2) motor- Large Ring Neo Magnet f. High Output- Non-Resonant Alu Rear Chamber- Silver Anodized Machined Alu Face Plate

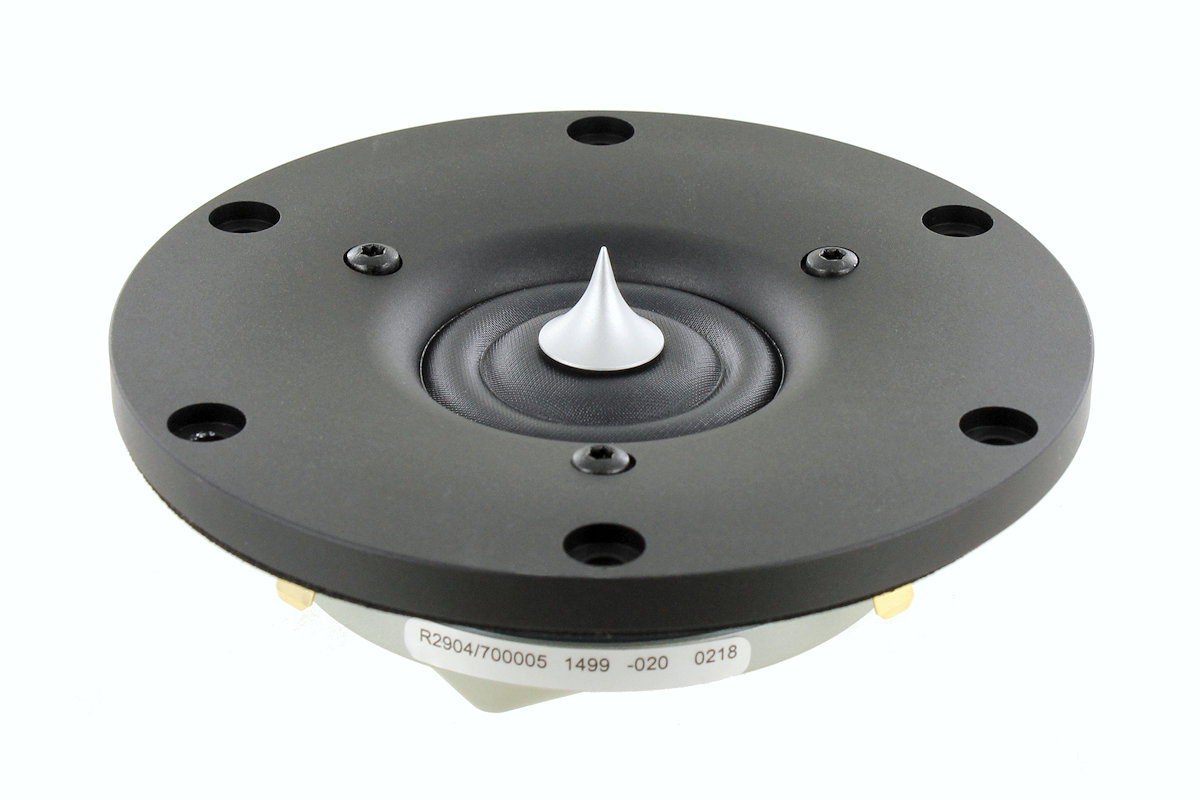

Scan-Speak R2904/700005
Scan-Speak R2904/700005The Revelator tweeter series consist of the revolutionary ring radiator design, which put an end to someof the design trade-offs in dome designs. The ring radiator still offers unrivaled performance.Zusätzliche Verbesserungen wurden vorgenommen, um Verzerrungen und Leistungsverluste zu reduzieren, wie zum Beispiel großeneodymium magnet systems for high sensitivity, and a careful design to optimize airflow in the chambers. - 1" ring dome diaphragm- Patented Phase Plug Design- Patented Symmetrical Drive (SD-2) motor- Large Ring Neo Magnet f. High Output- Non-resonant Alu Rear Chamber- Black Anodized Machined Alu Face Plate

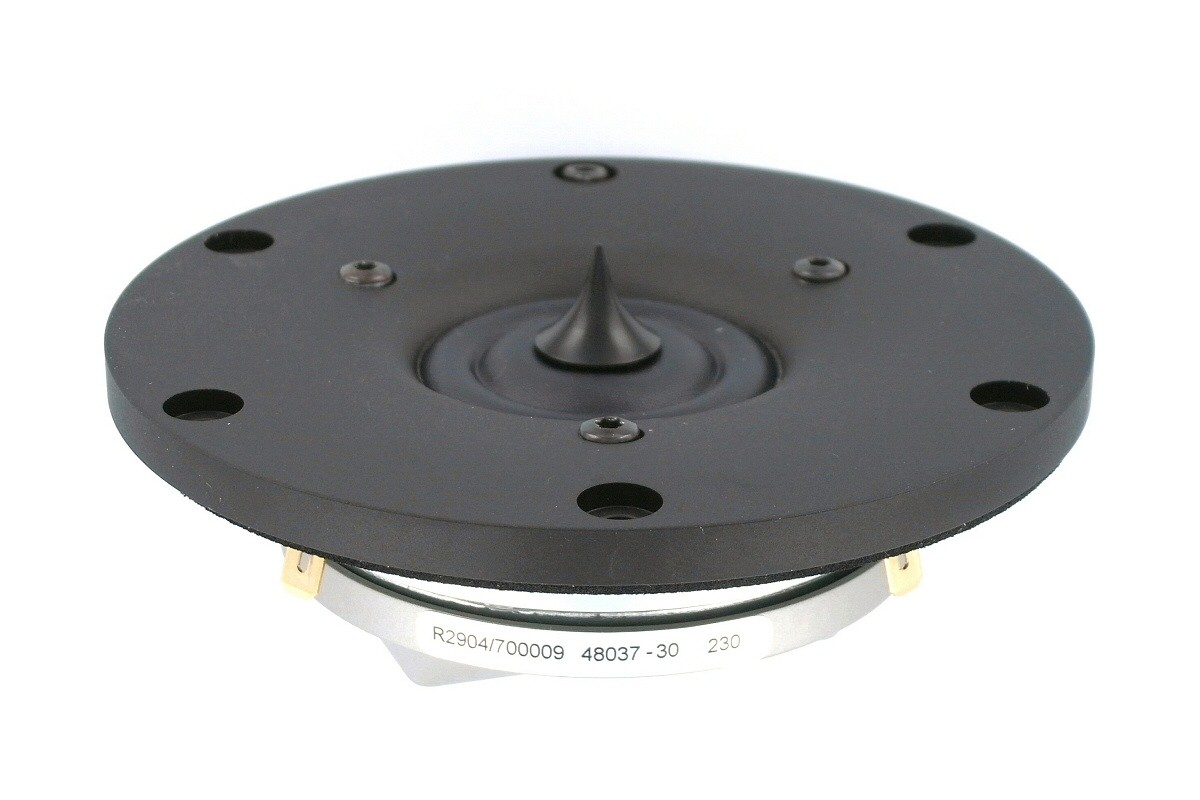

Scan-Speak R2904/700009
Scan-Speak R2904/700009The Revelator tweeter series consist of the revolutionary ring radiator design, which put an end to someof the design trade-offs in dome designs. The ring radiator still offers unrivaled performance.Zusätzliche Verbesserungen wurden vorgenommen, um Verzerrungen und Leistungsverluste zu reduzieren, wie zum Beispiel großeneodymium magnet systems for high sensitivity, and a careful design to optimize airflow in the chambers. - 1" ring dome diaphragm- Patentiertes Phase-Plug-Design- Patented Symmetrical Drive (SD-2) motor- Large Ring Neo Magnet f. High Output- Non-resonant aluminum rear chamber- Black Anodized Machined Alu Face Plate

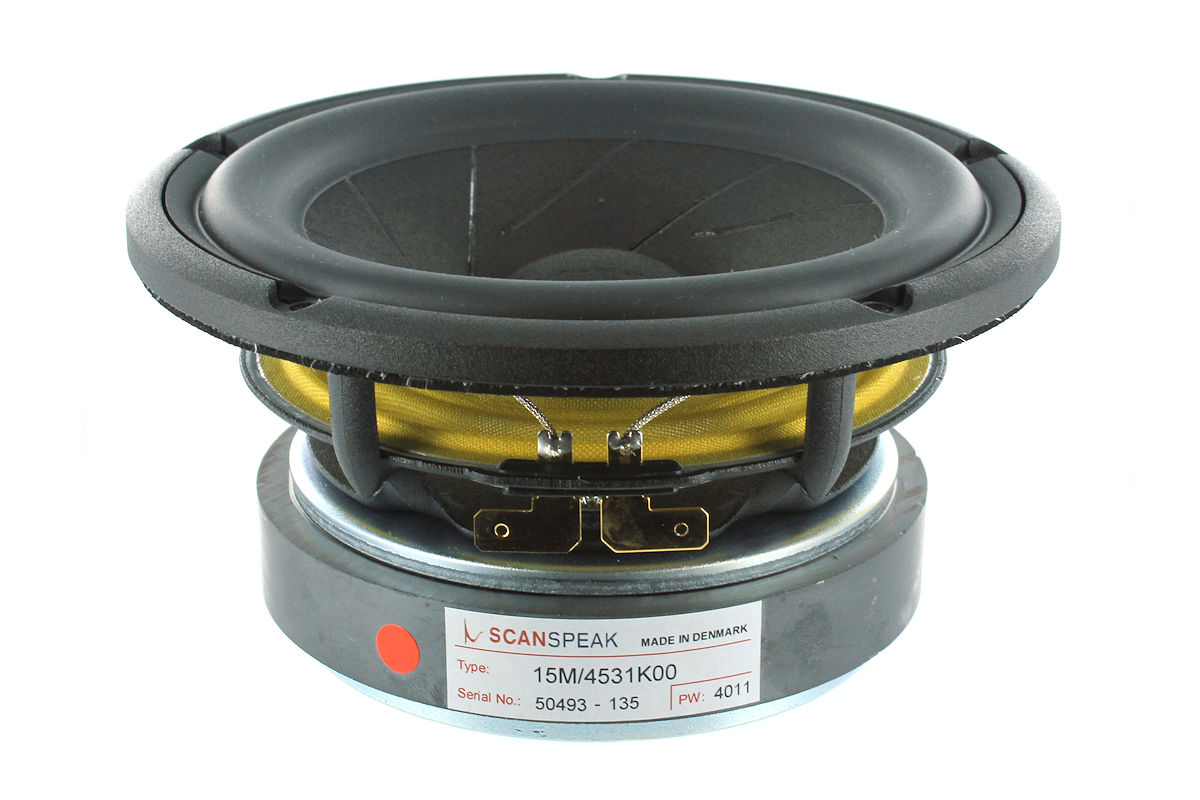

Scan-Speak 15M/4531K00
Scan-Speak 15M/4531K00The Revelator midranges are well known for their sliced paper cone technology. The slices are filled withdamping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speakslow-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough inmidrange clarity and overall smooth frequency response characteristics. - Hervorragende Mitteltonwiedergabe- Patentiertes symmetrisches Antriebsmotordesign- Sliced Cone (Controls Cone Breakups)- Low-loss linear suspension- High Output 90dB @ 2.83V- Die cast aluminum chassis vented below spider

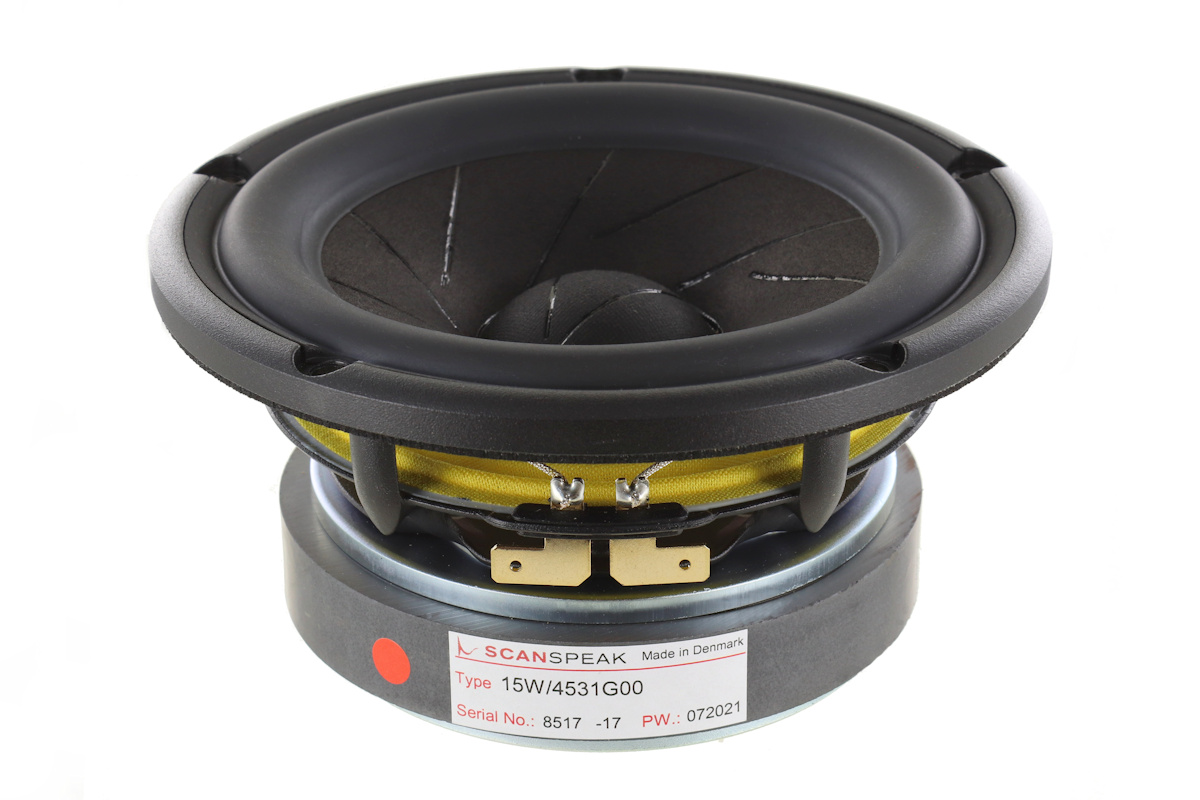

Scan-Speak 15W/4531G00
Scan-Speak 15W/4531G00The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slicesare filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combinationwith Scan-Speak's low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented aDurchbruch in der Klarheit des Mitteltonbereichs und den insgesamt gleichmäßigen Frequenzgang-Eigenschaften. - Patented Symmetrical Drive motor design- Sliced Cone (Controls Cone Breakups)- Low-loss linear suspension- Low Damping SBR Rubber Surround- Die cast aluminum chassis vented below spider- Großes Ferritmagnetsystem

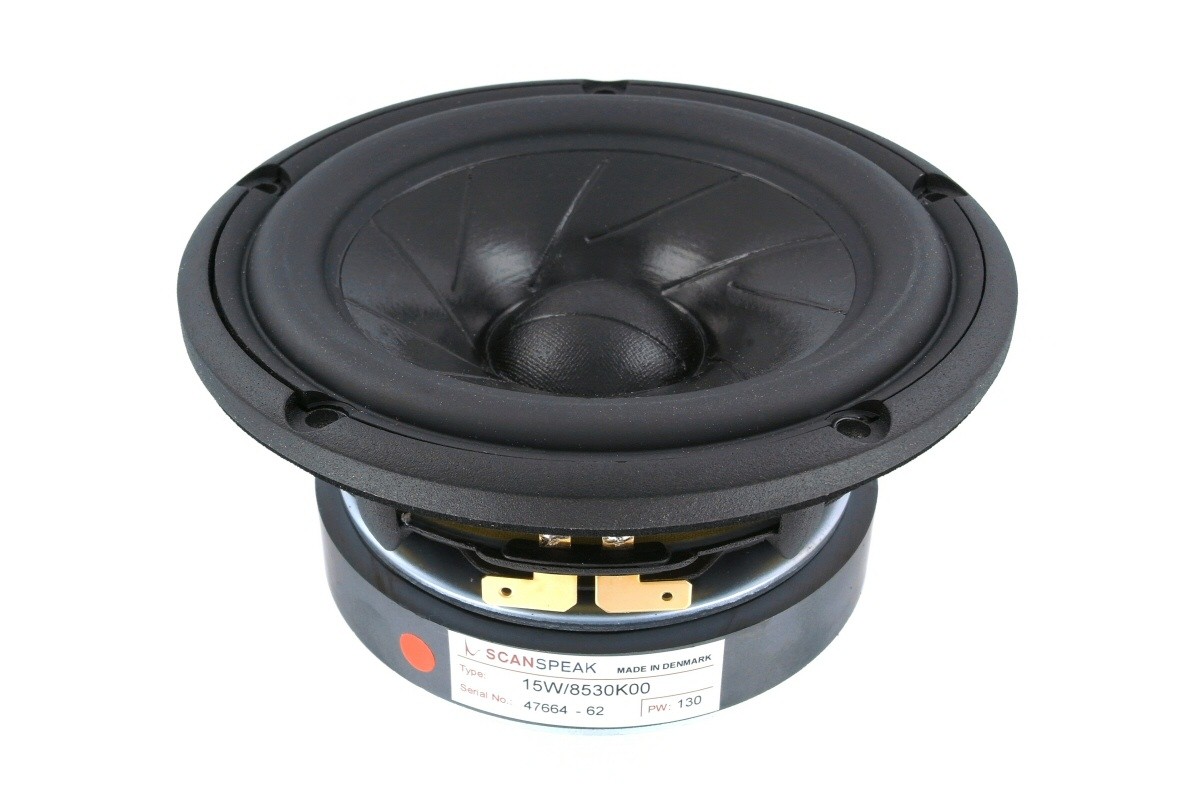

Scan-Speak 15W/8530K00
The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.Der Revelator-Mitteltöner und der Revelator-Mitteltieftöner sind beide bekannt für ihre Sliced-Paper- Cone-Technologie. Die Scheiben sind mit dämpfendem Klebstoff gefüllt, der die Aufbrechmoden in der Membran drastisch reduziert. In Kombination mit Scan-Speaks verlustarmer linearer Aufhängung und dem patentierten Symmetrical Drive (SD-1) stellt dies einen Durchbruch in Bezug auf die Klarheit des Mitteltöners und den insgesamt glatten Frequenzgang dar.

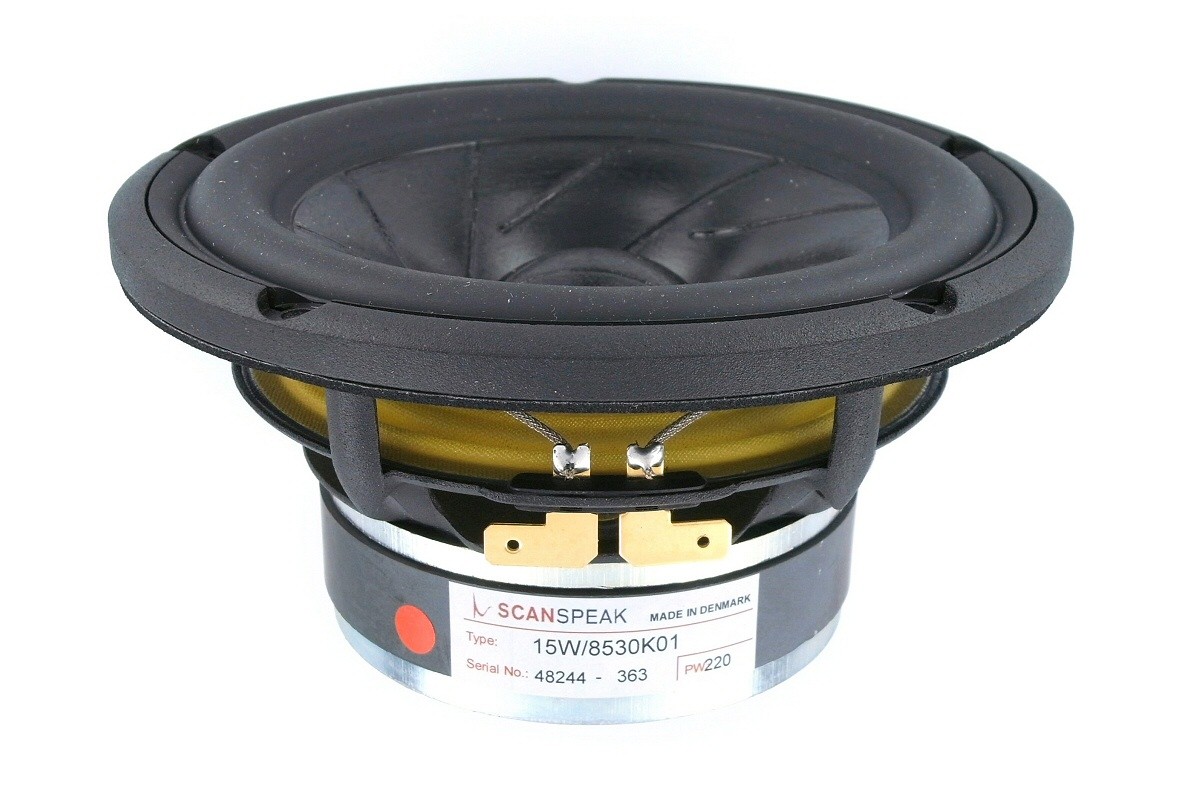

Scan-Speak 15W/8530K01
Scan-Speak 15W/8530K01The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slicesare filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combinationwith Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented aDurchbruch in der Klarheit im Mitteltonbereich und den insgesamt sanften Frequenzgang-Eigenschaften. - Patented Symmetrical Drive Motor Design- Sliced Cone (Controls Cone Breakups)- Coated Paper Cone- Low-loss linear suspension- Low Damping SBR Rubber Surround- Die cast aluminum chassis vented below spider

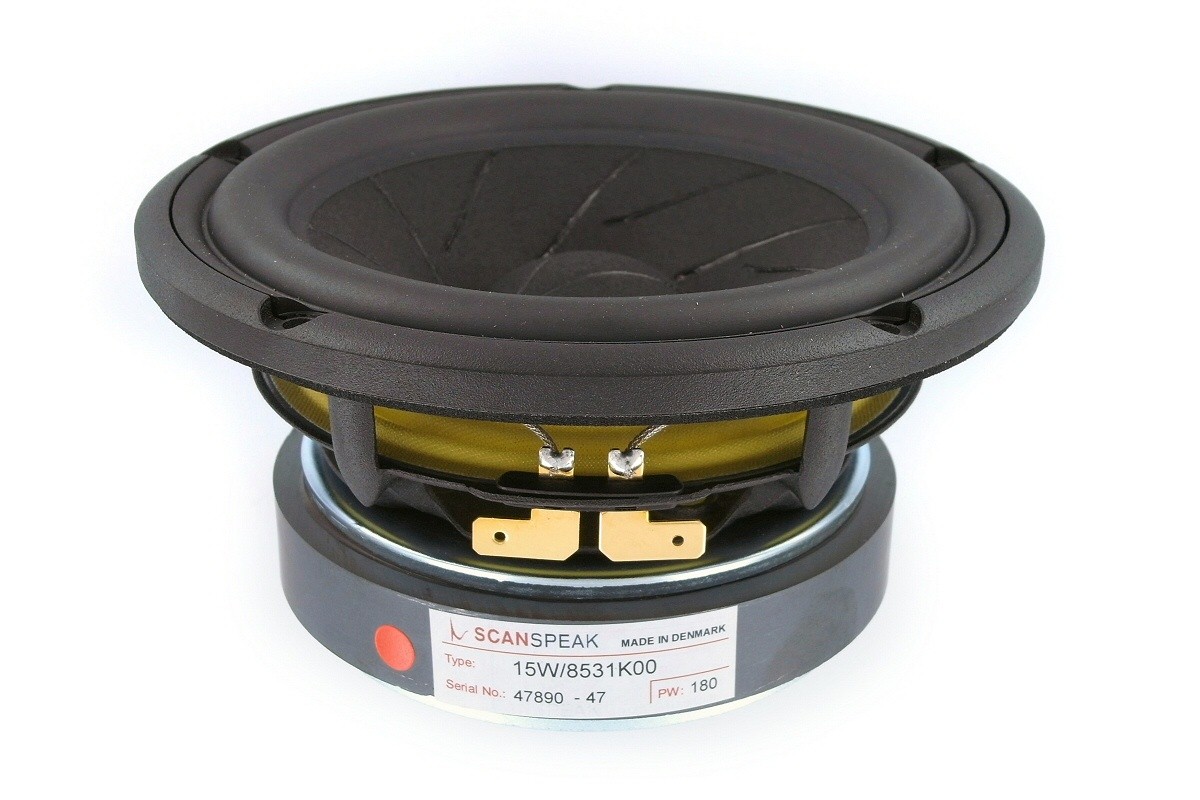

Scan-Speak 15W/8531K00
Scan-Speak 15W/8531K00The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slicesare filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combinationwith Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented aDurchbruch in der Klarheit des Mitteltonbereichs und den insgesamt sanften Frequenzgangmerkmalen. - Patented Symmetrical Drive Motor Design- Sliced Cone (Controls Cone Breakups)- Low-loss linear suspension- Low Damping SBR Rubber Surround- Die cast aluminum chassis vented below spider- Großes Ferritmagnetsystem

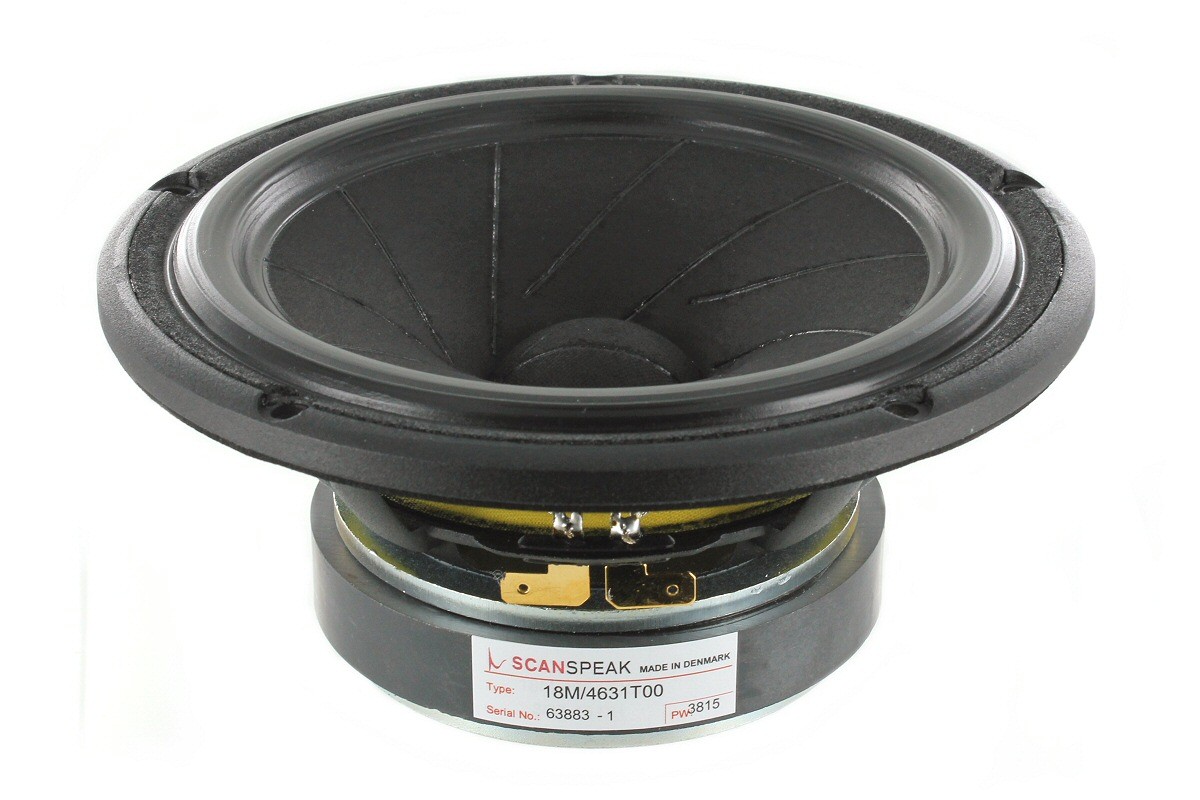

Scan-Speak 18M/4631T00
Scan-Speak 18M/4631T00The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slicesare filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combinationwith Scan-Speak's Low-loss linear suspension and the patented Symmetrical drive (SD-2) it represented aDurchbruch bei der Klarheit im Mitteltonbereich und den insgesamt gleichmäßigen Frequenzgang-Eigenschaften. - Patentiertes symmetrisches Antriebsmotordesign- Low-loss Linear Suspension- Coated Foam Surround- Sliced Cone (Control Cone Breakups)- High Sensitivity 89dB @ 2.83V- Rigid Titanium Voice Coil Former
Scan-Speak 18M/8631T00
Scan-Speak 18M/8631T00The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slicessind mit Dämpfungskleber gefüllt, der die Aufbrechmoden in der Membran drastisch reduziert. In Kombinationwith Scan-Speak's Low-loss linear suspension and the patented Symmetrical drive (SD-2) it represented aDurchbruch in der Klarheit im mittleren Bereich und den insgesamt sanften Frequenzgangmerkmalen. - Patentiertes Symmetrical Drive-Motordesign- Low-loss Linear Suspension- Coated Foam Surround- Sliced Cone (Control Cone Breakups)- High Sensitivity 89dB @ 2.83V- Rigid Titanium Voice Coil Former

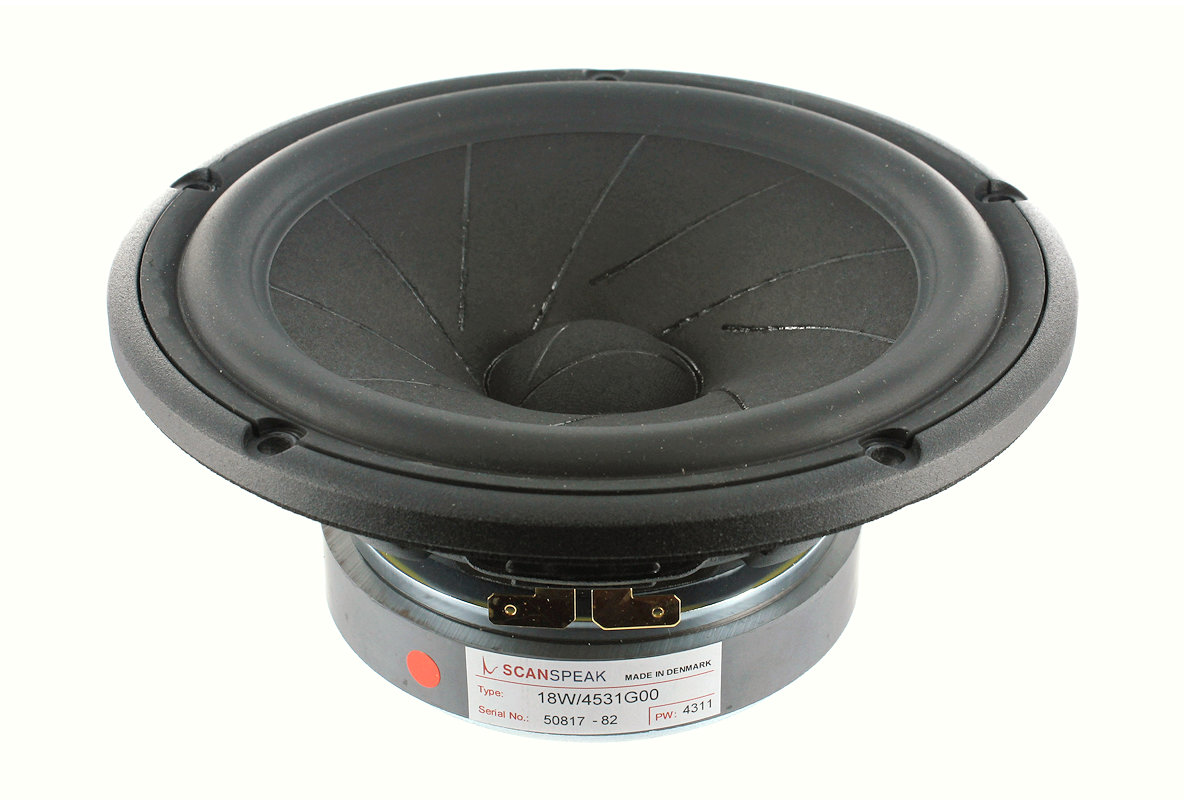

Scan-Speak 18W/4531G00
Scan-Speak 18W/4531G00The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slicessind mit Dämpfungskleber gefüllt, der die Aufbrechmodi in der Membran drastisch reduziert. In Kombinationwith Scan-Speak's low-loss linear suspension and the patented Symmetrical drive (SD-2) it represented aDurchbruch in der Klarheit des Mitteltonbereichs und den insgesamt sanften Frequenzgang-Eigenschaften. - Patented Symmetrical Drive Motor Design- Sliced Cone (Controls Cone Breakups)- Die cast aluminum frame vented below the spider- Low-loss linear suspension- Low Damping SBR Rubber Surround- Large Ferrite Magnet System

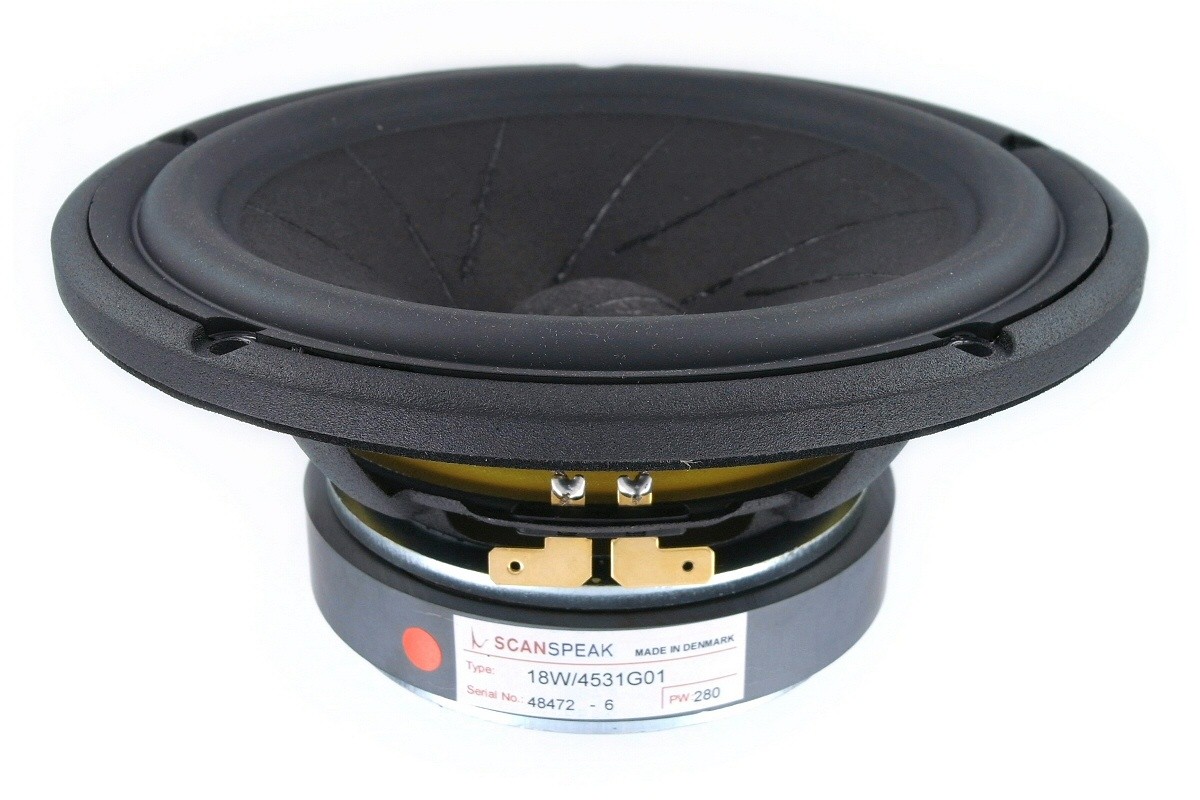

Scan-Speak 18W/4531G01
Scan-Speak 18W/4531G01The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slicessind mit Dämpfungskleber gefüllt, der die Aufbrechmodi in der Membran drastisch reduziert. In Kombinationwith Scan-Speak's low-loss linear suspension and the patented Symmetrical Drive (SD-2) it represented aDurchbruch in der Klarheit im Mitteltonbereich und den insgesamt gleichmäßigen Frequenzgangmerkmalen. - Patented Symmetrical Drive Motor Design- Sliced Cone (Controls Cone Breakups)- Wood Fibre Cone- Low-loss linear suspension- Low Damping SBR Rubber Surround- Großes Ferritmagnetsystem

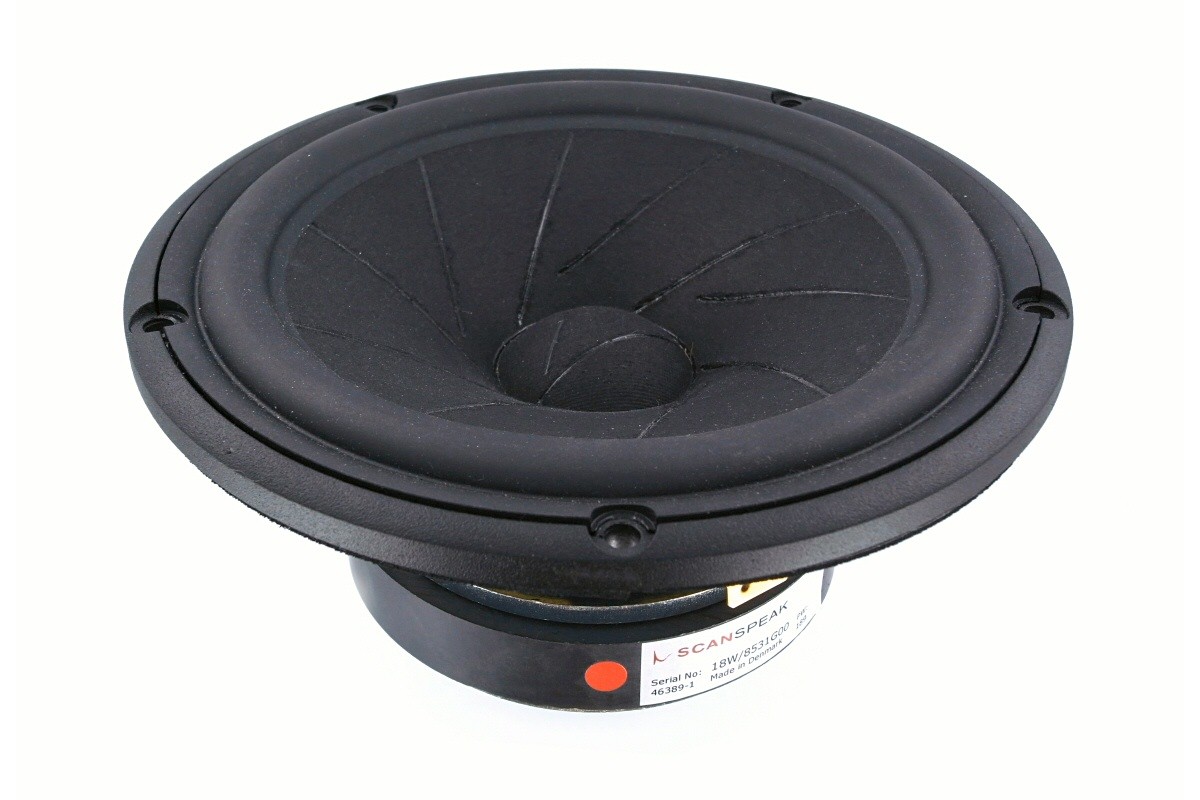

Scan-Speak 18W/8531G00
Scan-Speak 18W/8531G00The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slicessind mit Dämpfungskleber gefüllt, der die Aufbrechmodi in der Membran drastisch reduziert. In Kombinationwith Scan-Speak's low-loss linear suspension and the patented Symmetrical drive (SD-2) it represented aDurchbruch in der Klarheit im Mitteltonbereich und den insgesamt gleichmäßigen Frequenzgang-Eigenschaften. - Patented Symmetrical Drive Motor Design- Sliced Cone (Controls Cone Breakups)- Low-loss linear suspension- Low Damping SBR Rubber Surround- Die cast aluminum chassis vented below spider- Großes Ferritmagnetsystem

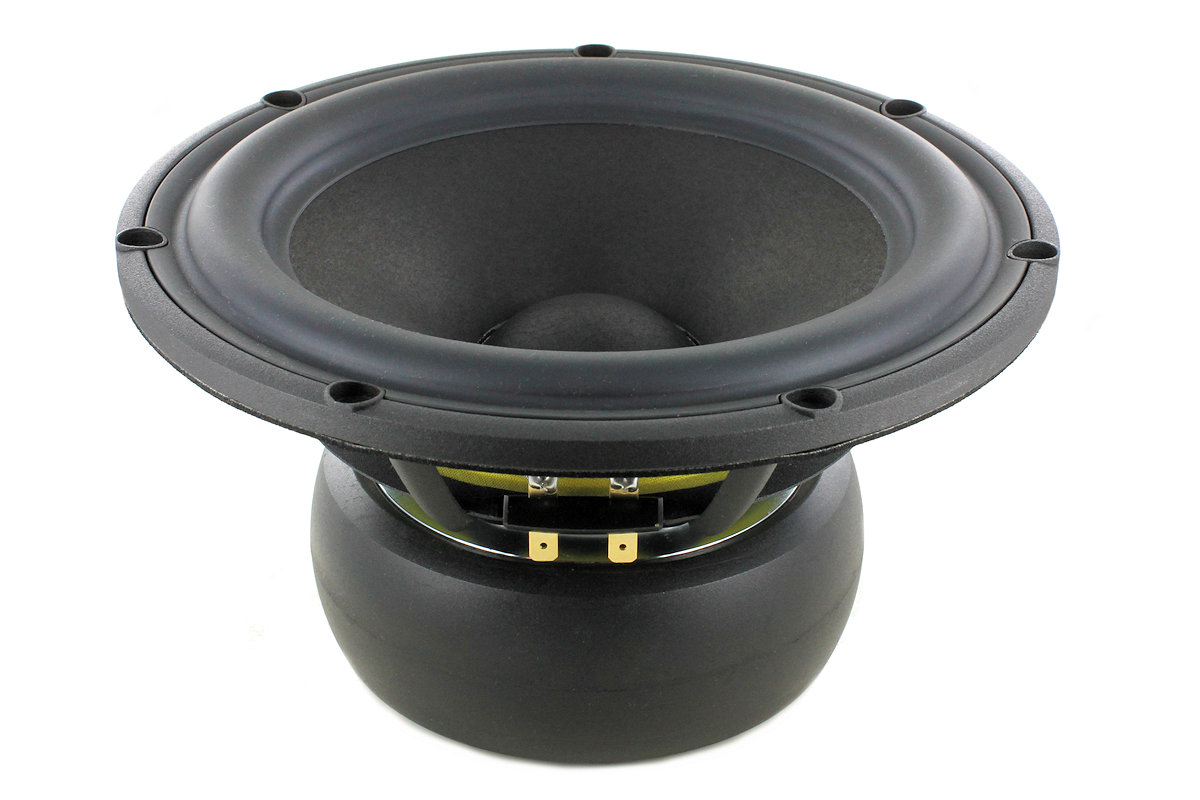

Scan-Speak 22W/4851T00
Scan-Speak 22W/4851T00The Revelator woofers and subwoofers feature very rigid cones in paper or aluminum that operate as apiston over a wide frequency range, in combination with Scan-Speak's linear suspension and the patentedSymmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequencyAntwort sowie perfekte Transientenwiedergabe. - Patented Symmetrical Drive Motor Design- Rigid Paper Cone- Low-loss linear suspension- Low Damping SBR Rubber Surround- Die cast aluminum chassis vented below spider- Ferrite Magnet System w. Rubber Boot
Scan-Speak 22W/8851T00
Scan-Speak 22W/8851T00The Revelator woofers and subwoofers features very rigid cones in paper or aluminum that operates as apiston over a wide frequency range, in combination with Scan-Speak's linear suspension and the patentedSymmetrical Drive (SD-1) it results in very low distortion and a smooth and well-behaved frequencyAntwort sowie perfekte Transientenwiedergabe. - Patentiertes symmetrisches Antriebsmotordesign- Rigid Paper Cone- Low-loss linear suspension- Low Damping SBR Rubber Surround- Die cast aluminum chassis vented below spider- Ferrite Magnet System w. Rubber Boot

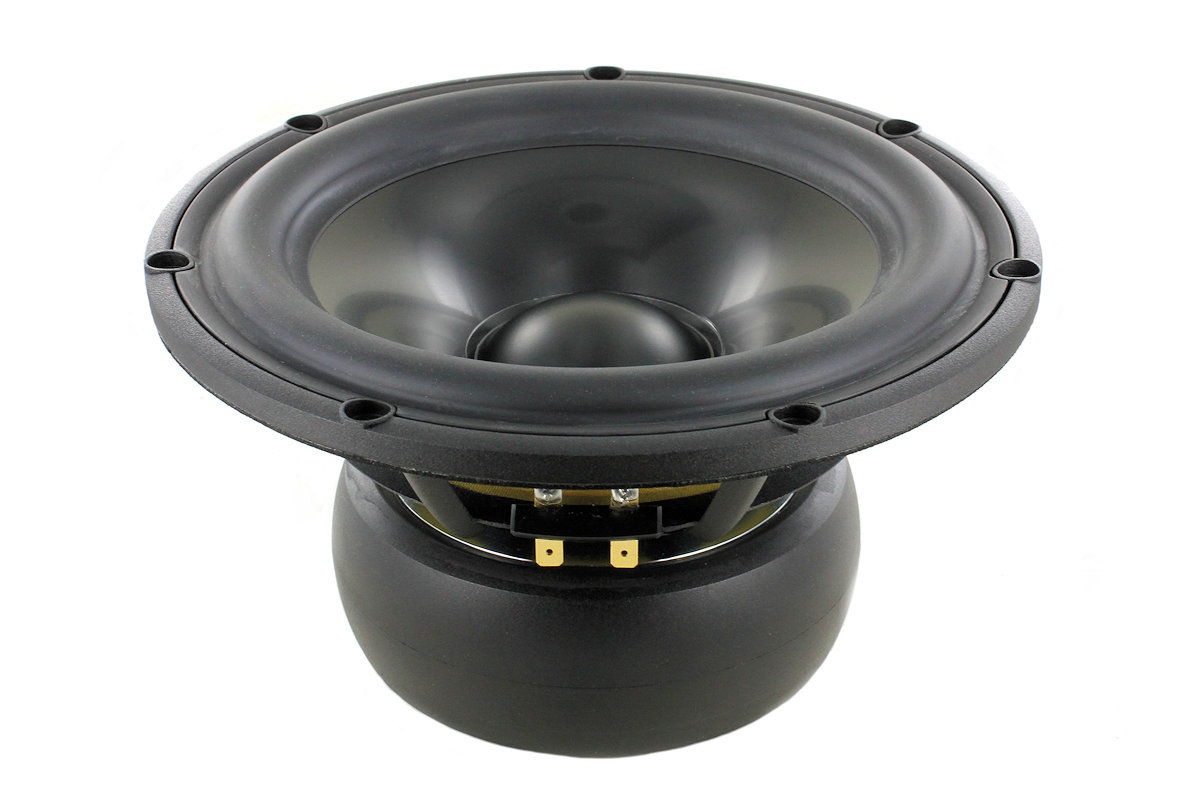

Scan-Speak 22W/8857T00
Scan-Speak 22W/8857T00The Revelator woofers and subwoofers feature very rigid cones in paper or aluminum that operate as apiston over a wide frequency range, in combination with Scan-Speak's linear suspension and the patentedSymmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequencyAntwort sowie perfekte Transientenwiedergabe. - Patented Symmetrical Drive Motor Design- Black anodized Rigid Alu Cone- Low loss linear suspension- Low Damping SBR Rubber Surround- Die cast aluminum chassis vented below spider- Ferrite Magnet System w. Rubber Boot

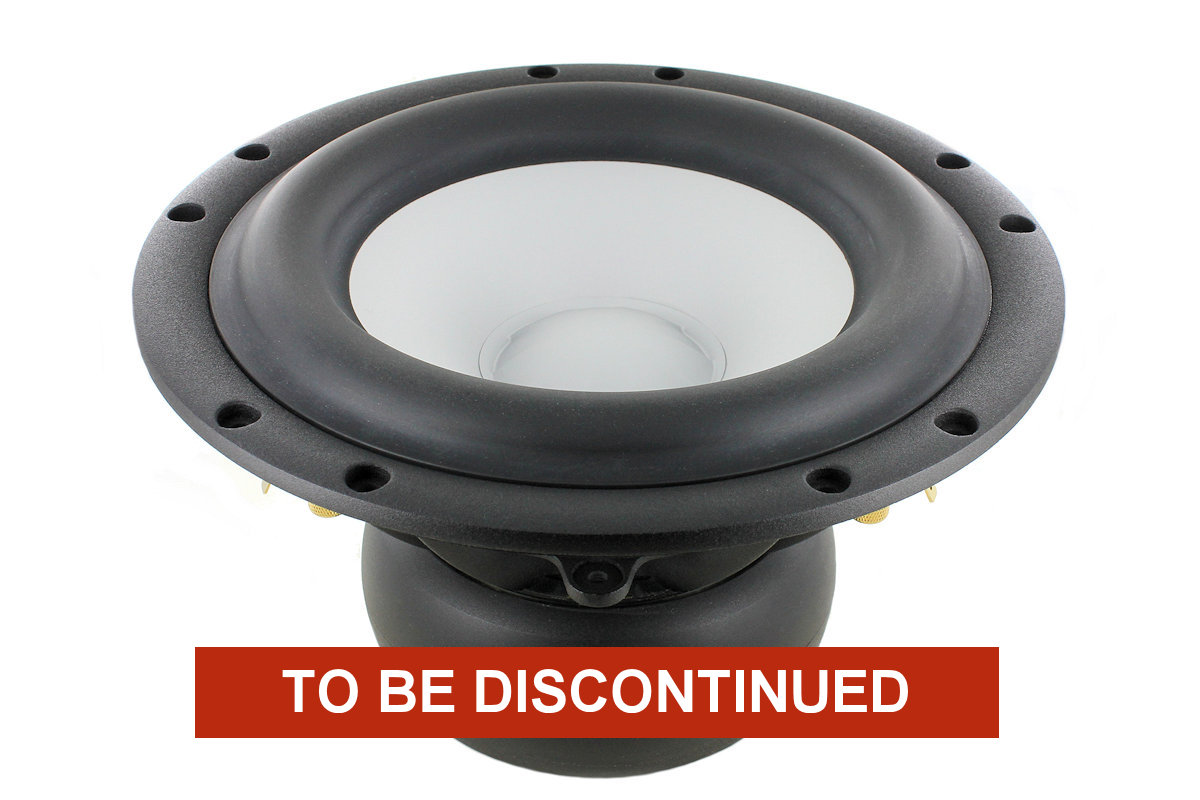

Scan-Speak 23W/4557T00
Scan-Speak 23W/4557T00The Revelator woofers and subwoofers feature very rigid cones in paper or aluminum that operate as apiston over a wide frequency range, in combination with Scan-Speak's linear suspension and the patentedSymmetrical Drive (SD-1) it results in very low distortion and a smooth and well-behaved frequencyAntwort sowie perfekte Transientenwiedergabe. - Patentiertes symmetrisches Antriebsmotordesign- Silver anodized Rigid Alu Cone- Long Throw Surround- Die cast aluminum chassis vented below spider- Ferrite Magnet System w. Rubber Boot- Gold Binding Post Terminals

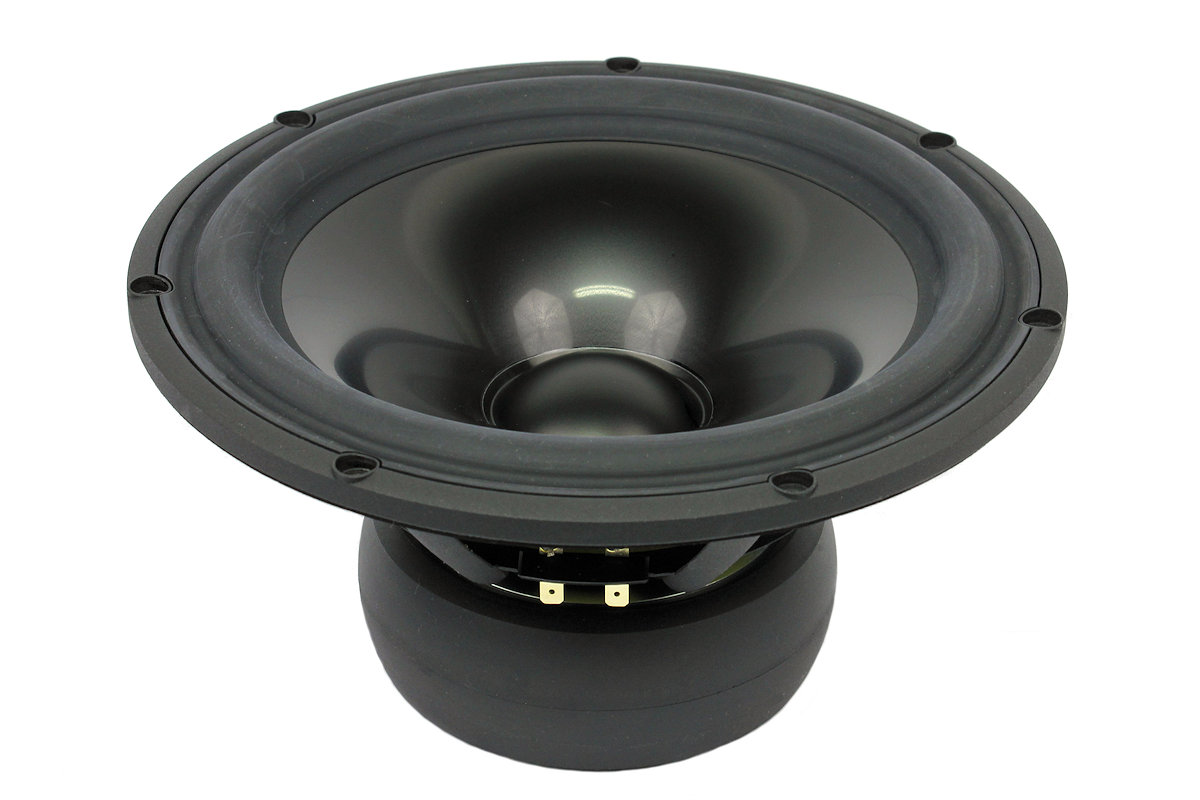

Scan-Speak 26W/4867T00
Scan-Speak 26W/4867T00The Revelator woofers and subwoofers feature very rigid cones in paper or aluminum that operate as apiston over a wide frequency range, in combination with Scan-Speak's low-loss linear suspension and thepatented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behavedFrequenzgang sowie perfekte Transientenwiedergabe. - Patented Symmetrical Drive Motor Design- Rigid Black Anodized Alu Cone- Low-loss linear suspension- Low Damping SBR Rubber Surround- Die cast aluminum chassis vented below spider- Ferrite Magnet System w. Rubber Boot

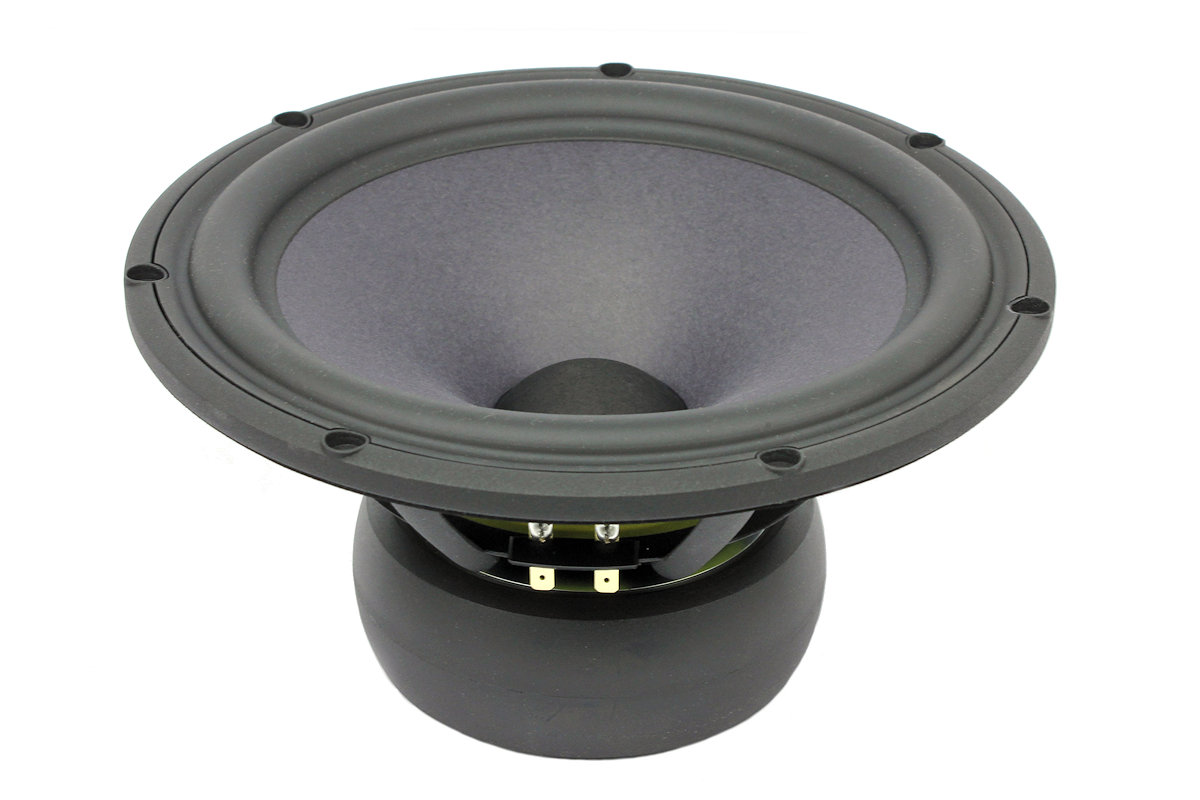

Scan-Speak 26W/8861T00
Scan-Speak 26W/8861T00The Revelator woofers and subwoofers features very rigid cones in paper or aluminum that operates as apiston over a wide frequency range, in combination with Scan-Speak's low-loss linear suspension and thepatented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behavedFrequenzgang sowie perfekte Transientenwiedergabe. - Patented Symmetrical Drive Motor Design- Starre Papierkegel- Low-loss linear suspension- Low Damping SBR Rubber Surround- Die cast aluminum chassis vented below spider- Ferrite Magnet System w. Rubber Boot

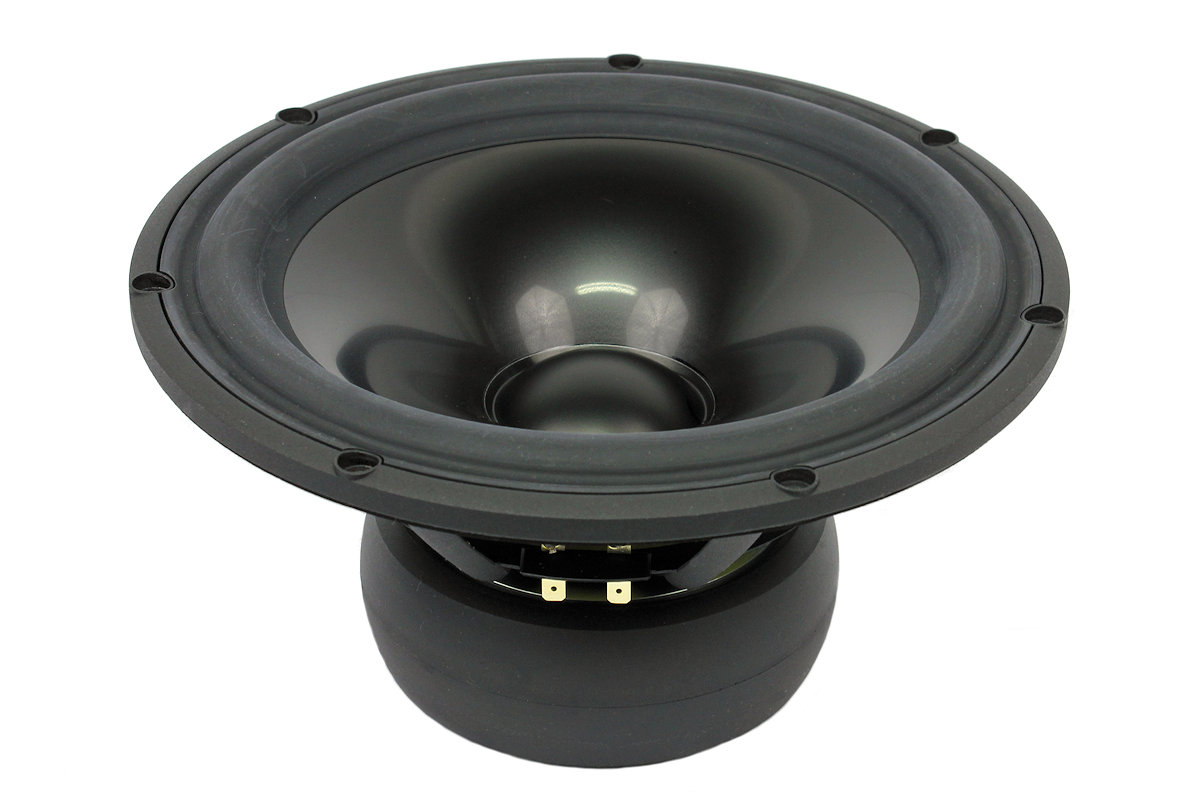

Scan-Speak 26W/8867T00
Scan-Speak 26W/8867T00The Revelator woofers and subwoofers features very rigid cones in paper or aluminum that operates as apiston over a wide frequency range, in combination with Scan-Speak's low-loss linear suspension and thepatented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behavedFrequenzgang sowie perfekte Transientenwiedergabe. - Patented Symmetrical Drive Motor Design- Rigid Black Anodized Aluminum Cone- Low-loss linear suspension- Low Damping SBR Rubber Surround- Die cast aluminum chassis vented below spider- Ferrite Magnet System w. Rubber Boot
Scan-Speak 28W/4878T00
Scan-Speak 28W/4878T00The 28W/4878T00 is a very powerful 28cm subwoofer, with its large 3” voice coil, extreme linear excursionand low resonance frequency it is perfect to reproduce the deepest frequencies. It features a paper-sandwich cone with very high stiffness and relatively low weight. The motor system has heavy duty copper<h1>High-Tech Sleeves for Optimizing Eddy Currents and Minimizing Self-Induction</h1> <p>In der modernen Elektrotechnik spielen Wirbelströme und Selbstinduktion eine entscheidende Rolle. Um diese Phänomene zu optimieren und ihre negativen Auswirkungen zu minimieren, wurden spezielle High-Tech-Hülsen entwickelt.</p><p>Diese Hülsen bestehen aus innovativen Materialien, die die Effizienz von elektrischen Systemen erheblich steigern. Durch die Reduzierung von Verlusten und die Verbesserung der Leistung tragen sie zur Nachhaltigkeit und Langlebigkeit der Geräte bei.</p><ul><li>Verbesserte Energieeffizienz</li><li>Reduzierte Wärmeentwicklung</li><li>Längere Lebensdauer der Komponenten</li>
Scan-Speak 28W/4878T01
Scan-Speak 28W/4878T01The 28W/4878T01 is a very powerful 28cm woofer, with its large 3” voice coil, extreme linear excursionand low resonance frequency it is perfect to reproduce the deepest frequencies. It features a paper-sandwich cone with very high stiffness and relatively low weight. The motor system has heavy duty copper<h1>Optimization of Eddy Currents and Minimization of Self-Induction</h1> <p>In der Elektrotechnik spielen Wirbelströme und Selbstinduktion eine bedeutende Rolle. Um diese Effekte zu optimieren und zu minimieren, werden spezielle Hüllen oder Ummantelungen verwendet. Diese sleeves sind entscheidend, um die Effizienz von elektrischen Geräten zu verbessern.</p><ul><li><strong>Materialwahl:</strong> Die Auswahl des richtigen Materials für die sleeves ist entscheidend, um die gewünschten Eigenschaften zu erreichen.</li><li><strong>Design:</strong> Ein durchdachtes Design kann dazu beitragen, die Wirbelströme zu lenken und die Selbstinduktion zu reduzieren.</li><li><strong>Anwendung:</strong> Diese sleeves finden Anwendung in Transformatoren, Elektromotoren und anderen elektrischen Geräten.</li></ul>
Scan-Speak 28W/8878T01
Scan-Speak 28W/8878T01The 28W/8878T01 is a very powerful 28cm woofer, with its large 3” voice coil, extreme linear excursionand low resonance frequency it is perfect to reproduce the deepest frequencies. It features a paper-sandwich cone with very high stiffness and relatively low weight. The motor system has heavy duty copper<h1>Optimizing Eddy Currents and Minimizing Self-Induction</h1> <p>Eddy currents can cause significant energy losses in electrical systems. To mitigate these effects, it is crucial to optimize the design of sleeves used in various applications.</p><p>By minimizing self-induction, we can enhance the efficiency of electrical devices, leading to better performance and reduced energy consumption.</p><p>Explore our range of solutions designed to tackle these challenges effectively.</p>- Paper sandwich cone- Spider with balanced tinsel leads- 3" voice coil, titanium former, paper reinforced
Scan-Speak 32W/4878T01
Scan-Speak 32W/4878T01The 32W/4878T01 the most powerful woofer designed by Scan-speak. Its large 3” voice coil and lowresonance frequency is perfect to reproduce low to mid frequencies with high efficiency. It features abrand new type of paper-sandwich cone with a special foam filling technology (patented) that gives thecone very high stiffness and relative low weight. The motor system has heavy-duty copper sleeves foroptimizing eddy currents effect and minimized self-induction. - Paper sandwich cone with Patented foam filling- Lin. excursion (±7.0 mm) with high efficiency- Patentierter Symmetrical Drive Motor- 3" voice coil, titanium former and paper reinforced- Spider with balanced woven in tinsel leads- Stiff and strong die cast aluminum chassis
Scan-Speak 32W/8878T01
Scan-Speak 32W/8878T01The 32W/8878T01 the most powerful woofer designed by Scan-speak. Its large 3” voice coil and lowresonance frequency is perfect to reproduce low to mid frequencies at with high efficiency. It features abrand new type of paper-sandwich cone with a special foam filling technology (patented) that gives theKegel mit sehr hoher Steifigkeit und relativ geringem Gewicht. Das Motorsystem verfügt über robuste Kupferhülsen füroptimizing eddy currents effect and minimized self-induction. - Papiersandwichkegel mit patentierter Schaumfüllung- Patented Symmetrical Drive motor- Spider with balanced woven in tinsel leads- Long linear excursion (+/- 7.5 mm)- 3" Voice coil, Titanium former and paper reinforced<!DOCTYPE html>
Scan-Speak 32W/4878T11
Scan-Speak 32W/4878T11The 32W/4878T11 woofer is optimized for high sensitivity applications. It offers an impressive 95 dBsensitivity at 2.83V/1m. It features a large 3” motor system with patented Symmetrical Drive, doubleferrite magnets and a sandwich paper cone surrounded by a coated foam suspension. - 95 dB Sensitivity @ 2.83V/1m- Paper sandwich cone- Coated foam Surround- Patented Symmetrical Drive motor- Leistungsstarker Motor mit zwei Ferritmagneten- 3" voice coil, titanium former and paper reinforced

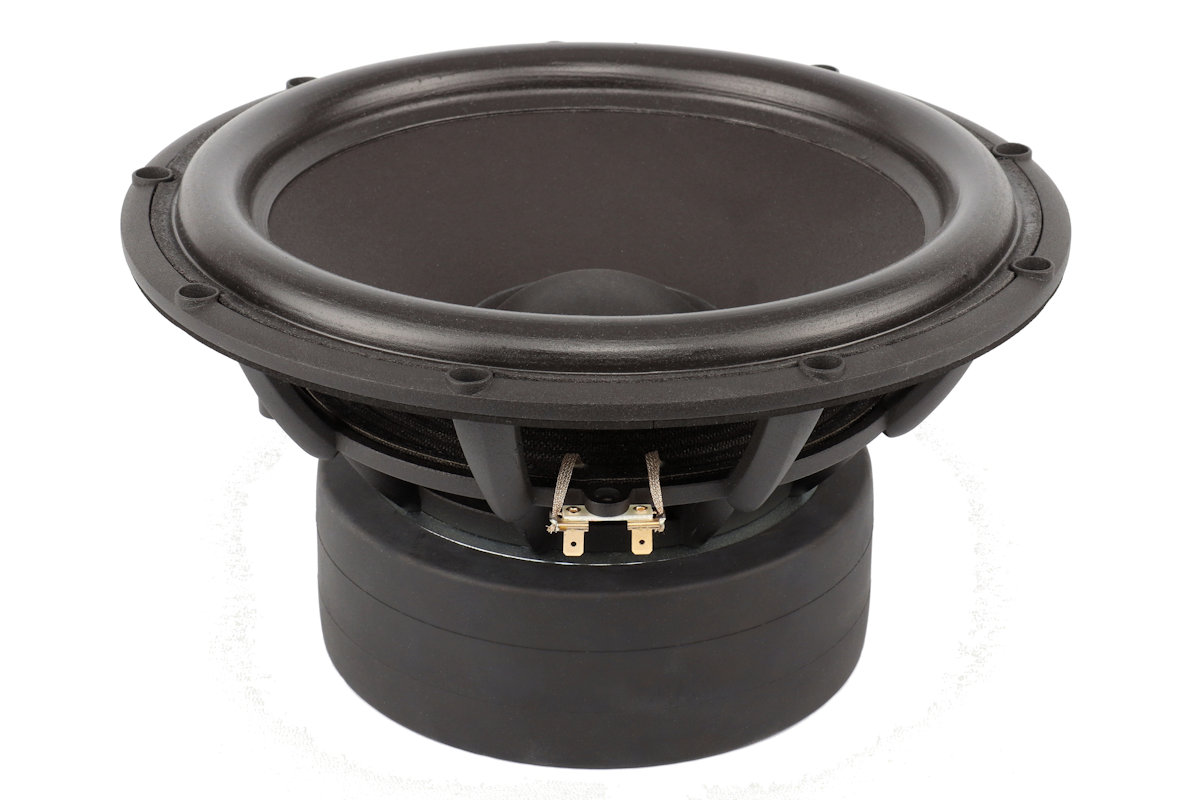

Scan-Speak 32W/8878T11
Scan-Speak 32W/8878T11The 32W/8878T11 woofer is optimized for high sensitivity applications. It offers an impressive 91.5 dBsensitivity at 2.83V/1m. It features a large 3” motor system with patented Symmetrical Drive, doubleferrite magnets and a sandwich paper cone surrounded by a coated foam suspension. - 92 dB Sensitivity @ 2.83V/1m- Paper sandwich cone- Coated foam surround- Patented Symmetrical Drive motor- Leistungsstarker Motor mit zwei Ferritmagneten- 3" voice coil, titanium former and paper reinforced
