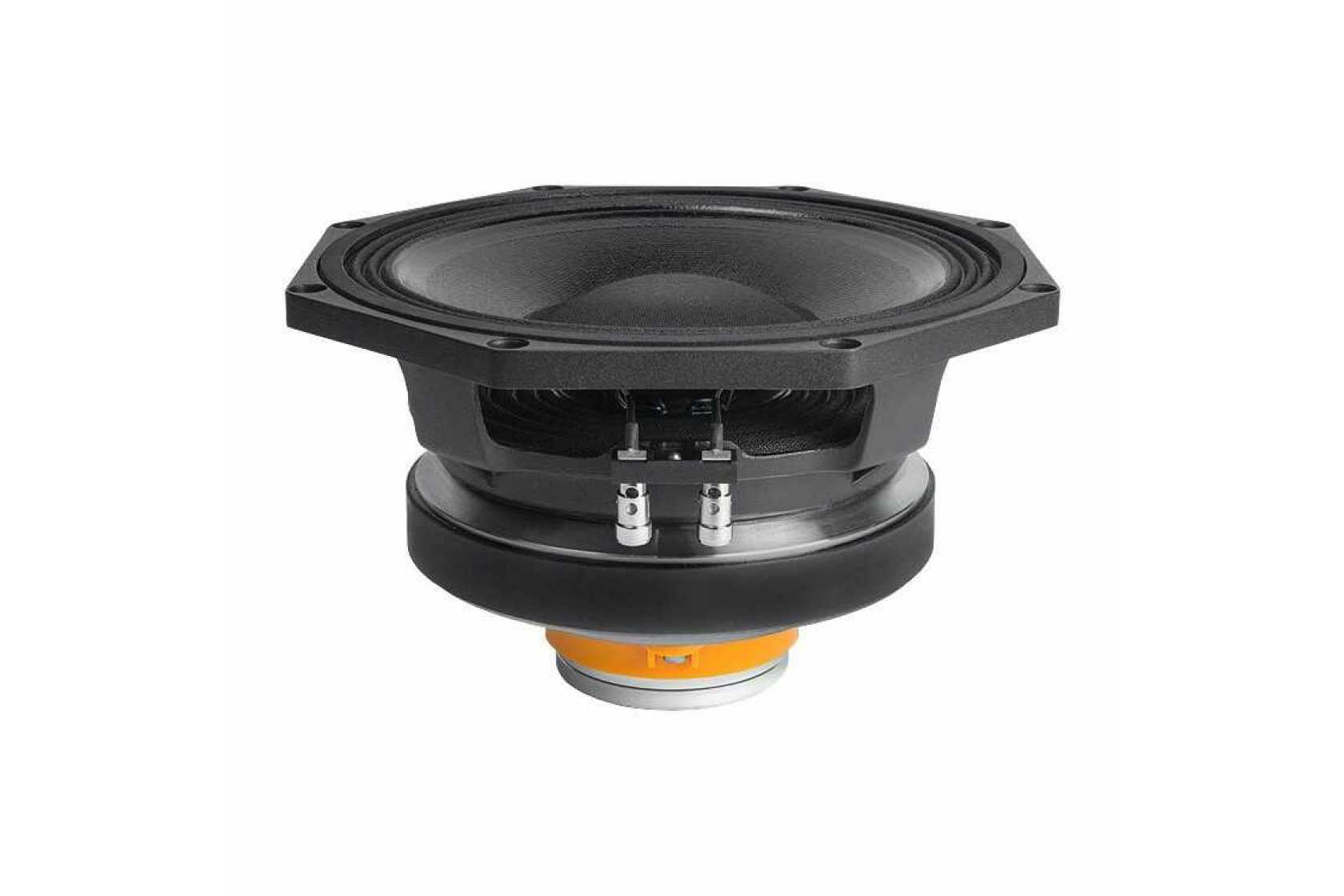

Faital Pro 8HX230-8
Hinweis; diese Daten gelten nur für Chassis die vor 3/25 gebaut wurden. Das neue Chassis ab 3/25 wird aktuell getestet und ggf. die Entwicklung des Bausatzes nagepasst. Eigenschaften Tieftöner Schwingspule 2,5 " - 65 mm Alu Schwingspule Ferrit Magnet Thiele & Small Parameter Fs 70 Hz Re 6,5 / 5,5 Ohm Qms 7,4 Le 0,57 mH Qes 0,38 Qts 0,36 Vas 8 l Mms 23,6 g BL 15,1 Tesla/meter Xmax 6,17 mm Cms 0,14 mm/N Sd 205 cm² Rms 1,79 kg/s Eigenschaften HF-Treiber Schwingspule HF Treiber 1,46 "- 37 mm nominale Impedanz HF-Treiber 8 Ohm nominale Belastbarkeit HF-Treiber 30 W maximale Belastbarkeit HF-Treiber 60 W Empfindlichkeit HF-Treiber (1 W / 1 m) 105 dB Frequenzgang HF-Treiber 1200 - 20000 Hz Schwingspulenträger HF-Treiber Kapton Diaphragmamaterial HF-Treiber Ketone Polymer Abstrahlwinkel (H x V) 100 ° <

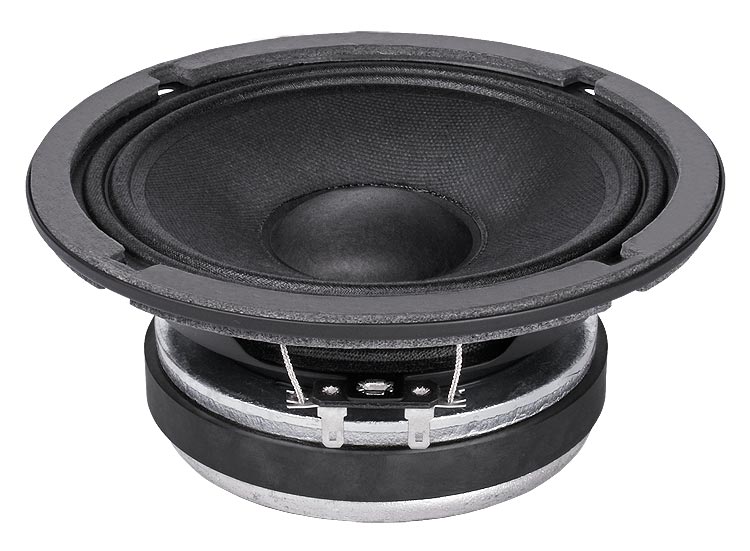

Faital Pro 6FE200-4
Faital Pro 6FE200-4 Nominal Specifications Nominal Diameter 160 mm (6 in) Overall Diameter 167.4 mm (6.59 in) Bolt Circle Diameter 154 mm (6.06 in) Baffle Cutout Diameter 144 mm (5.67 in) Depth 77 mm (3.03 in) Flange and Gasket Thickness 8 mm (0.31 in) Net Weight 2 kg (4.4 lb) Shipping Box(Single Carton Box) 190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in) Shipping Weight 2.2 kg (4.9 lb) Technical Parameters Nominal Impedance 4 Ohm Minimum Impedance 3.6 Ohm AES Power Handling (1) 130 W Maximum Power Handling (2) 260 W Sensitivity (1W/1m) 95 dB Frequency Range 85÷6000 Hz Voice Coil Diameter 37 mm (1.46 in) Winding Material Al Former Material Kapton Winding Depth 11.9 mm (0.47 in) Magnetic Gap Depth 8 mm (0.31 in) Flux Density 1 T Magnet Ferrite Ring Basket Material Steel Demodulation No Cone Surround (3) M-Roll NET Air Volume filled by Loudspeaker 0.45 dm^3 (0.016 ft^3) Spider Profile 1x constant height waves Thiele and small parameters Fs 120 Hz Re 3 Ohm Qes 0.45 Qms 6.2 Qts 0.42 Vas 4.3 dm^3 (0.15 ft^3) Sd 131 cm^2 (20.3 in^2) Xmax (4) 4.62 mm Xdamage (5) 10.4 mm Mms 9.7 g Bl 7 N/A Le 0.20 mH Mmd 8.0 g Cms 0.18 mm/N Rms 1.2 kg/s Eta Zero 1.61 % EBP 267 Hz PART NUMBER (P/N) Faston Terminals - 4 Ohm Version 01604055 Notes: (1) 2 Hours Test According to AES 2-1984 Rev. 2003 (2) Maximum power is defined as 3dB greater than nominal power. (3) Treated Polycotton (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) (5) Maximum excursion before permanent damage

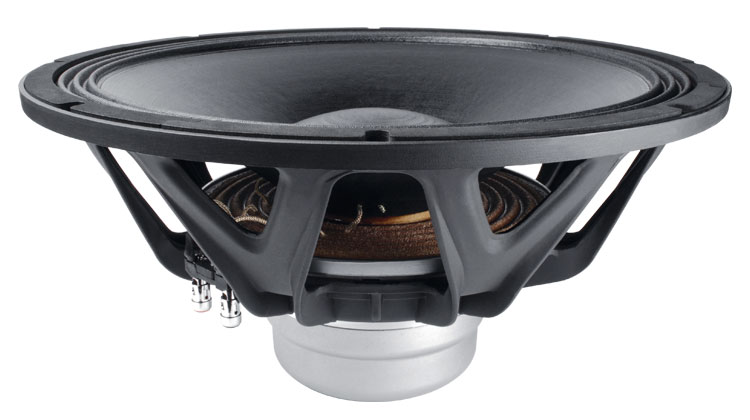

Faital Pro 18XL2000-8
Built to deliver extreme output and maximum impact, Faital Pro's 18XL2000 18" professional subwoofer is one of the most powerful drivers on the market. It's large 4.65" voice coil and lightweight neodymium motor system is designed to handle up to 2,000 watts RMS while allowing for more than 32 mm of peak-to-peak excursion. This driver will produce extreme SPL with incredibly low distortion.Key Features Large 4.65" voice coil and extensive cooling to handle up to 2,000 watts RMS (4,000 watts peak) Powerful but compact neodymium motor keeps driver weight to under 25 pounds Accordion surround and dual spiders allows for linear excursion 16.32 mm xmax for maximum air displacement and amazing impact

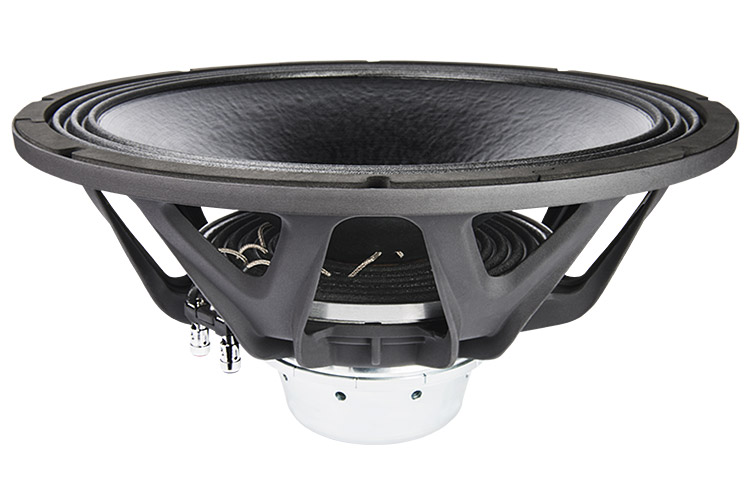

FaitalPRO 18XL1800-8
Built to deliver extreme output and maximum impact, Faital Pro's 18XL1800 18" professional subwoofer is one of the most powerful drivers on the market. It's large 4" voice coil and lightweight neodymium motor system is designed to handle up to 1,600 watts RMS while allowing for more than 20 mm of peak-to-peak excursion. This driver will produce extreme SPL with incredibly low distortion. Key Features Large 4" voice coil and extensive cooling to handle up to 1,600 watts RMS Powerful but compact neodymium motor keeps driver weight to under 25 pounds Accordion surround and dual spiders allows for linear excursion 20 mm xmax for maximum air displacement and amazing impact

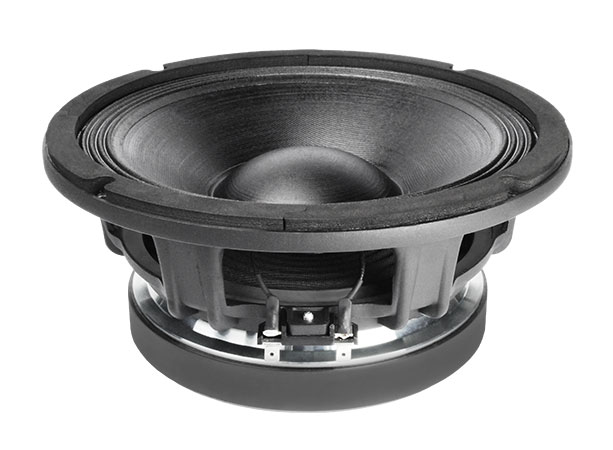

FaitalPRO 10PR410-8
FaitalPRO 10PR410-8Nominal SpecificationsNominal Diameter 250 mm (10 in)Overall Diameter 261 mm (10.28 in)Bolt Circle Diameter 246 mm (9.69 in)Baffle Cutout Diameter 230 mm (9.06 in)Depth 131 mm (5.16 in)Flange and Gasket Thickness 11.5 mm (0.45 in)Net Weight 7.5 kg (16.6 lb)Shipping Box(Single Carton Box) 294 x 290 x 203 mm(11.6 x 11.4 x 8.0 in)Shipping Weight 8.1 kg (17.9 lb)Technical ParametersNominal Impedance 8 OhmMinimum Impedance 6.8 OhmAES Power Handling (1) 300 WMaximum Power Handling (2) 600 WSensitivity (1W/1m) 99 dBFrequency Range 100÷2000 HzVoice Coil Diameter 65 mm (2.56 in)Winding Material AlFormer Material Glass FiberWinding Depth 12.5 mm (0.49 in)Magnetic Gap Depth 10.5 mm (0.41 in)Flux Density 1.3 TMagnet Ferrite RingBasket Material AluminumDemodulation Aluminum RingCone Surround (3) Accordion (4 Waves)NET Air Volume filled by Loudspeaker 2 dm^3 (0.070 ft^3)Spider Profile 1x variable height waves
FaitalPRO 10FH520-8
Built to deliver extreme output and maximum impact, Faital Pro's 18XL2000 18" professional subwoofer is one of the most powerful drivers on the market. It's large 4.65" voice coil and lightweight neodymium motor system is designed to handle up to 2,000 watts RMS while allowing for more than 32 mm of peak-to-peak excursion. This driver will produce extreme SPL with incredibly low distortion.Key Features Large 4.65" voice coil and extensive cooling to handle up to 2,000 watts RMS (4,000 watts peak) Powerful but compact neodymium motor keeps driver weight to under 25 pounds Accordion surround and dual spiders allows for linear excursion 16.32 mm xmax for maximum air displacement and amazing impact
