miniDSP DDRC-88D Digital Multi-Channel I/O Dirac Live-Prozessor
The MiniDSP DDRC-88D is a state-of-the-art digital audio processor with comprehensive Dirac Live® room correction. With its 8-channel digital input and output configuration, it is ideal for professional audio environments such as studios, broadcast systems, high-end hi-fi and digital cinemas.
Technical specifications
The processor is based on a powerful 32-bit floating point SHARC DSP from Analog Devices and processes audio signals with a resolution of 24 bits. The sampling rate is automatically adapted to the first input channel, which means that 192 kHz, for example, is supported throughout.

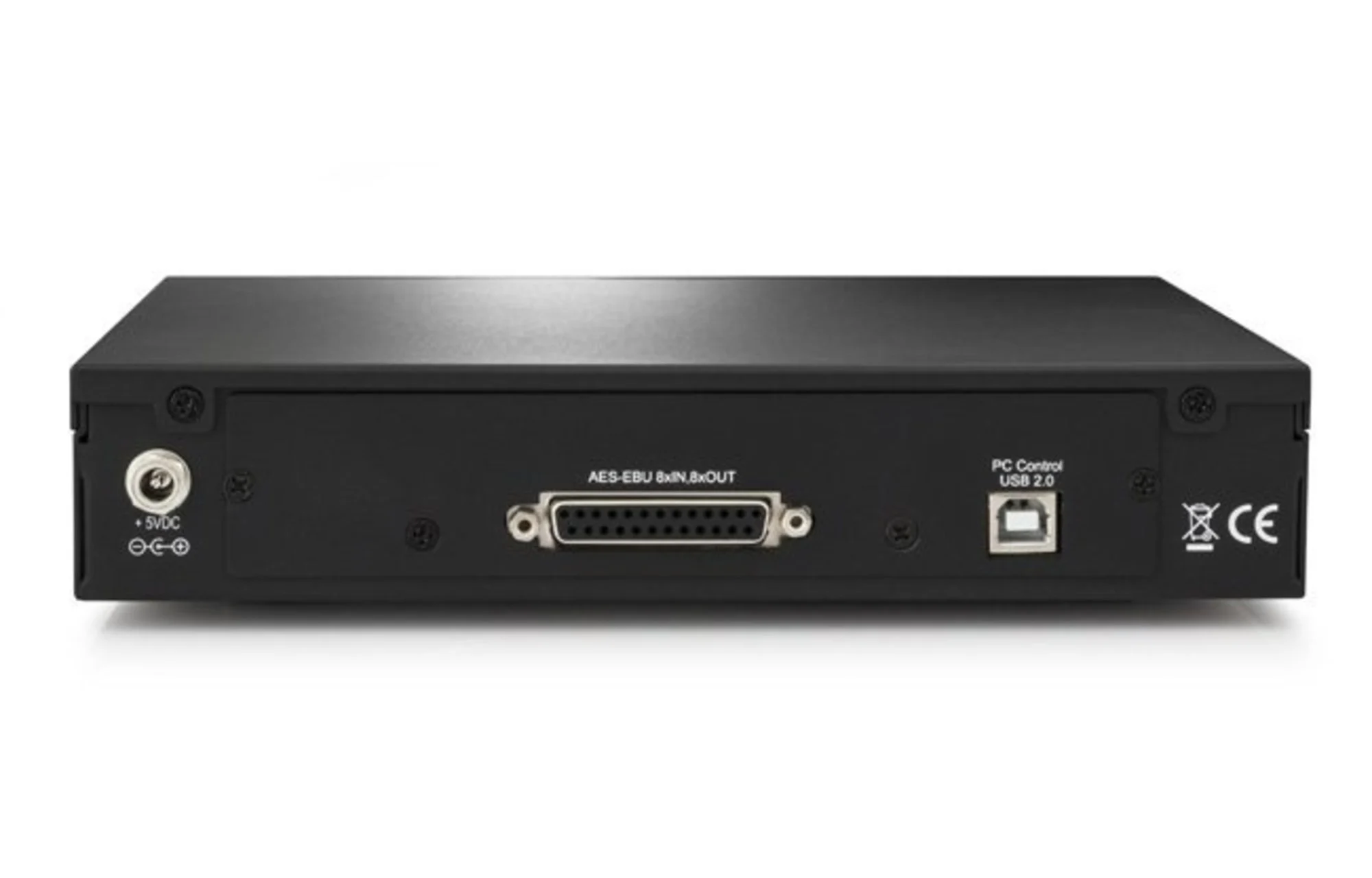

Connections and connectivity
8 channels via 4 stereo AES-EBU/SPDIF inputs
8 channels via 4 stereo AES-EBU/SPDIF outputs
DB25 connection for DCI processors
Special features
The DDRC-88D comes in a compact housing and offers professional functions for room acoustic optimisation. An optional DDRC-88BM plug-in extends the functionality with bass management and active speaker processing.
Scope of delivery
- DDRC-88D audio processor
- 5VDC power supply with IEC cable
- DB25 adapter cable (either XLR-AES-EBU or SPDIF/COAX)
USB cable
Microphone stand
Plug-in voucher
Configuration is user-friendly via USB using the supplied software suite for Mac or Windows. Four presets can be called up directly on the device or via remote control.
- DDRC-88D Audioprozessor
- 5VDC-Netzteil mit IEC-Kabel
- DB25-Adapterkabel (wahlweise XLR-AES-EBU oder SPDIF/COAX)
- USB-Kabel
- Mikrofonstativ
- Plugin-Gutschein
Die Konfiguration erfolgt benutzerfreundlich über USB mittels der mitgelieferten Software-Suite für Mac
oder Windows. Vier Voreinstellungen können direkt am Gerät oder per Fernbedienung abgerufen werde
