Dayton Audio RSS315HO-44
€329.95
Available in 14 days, delivery time 1-3 days

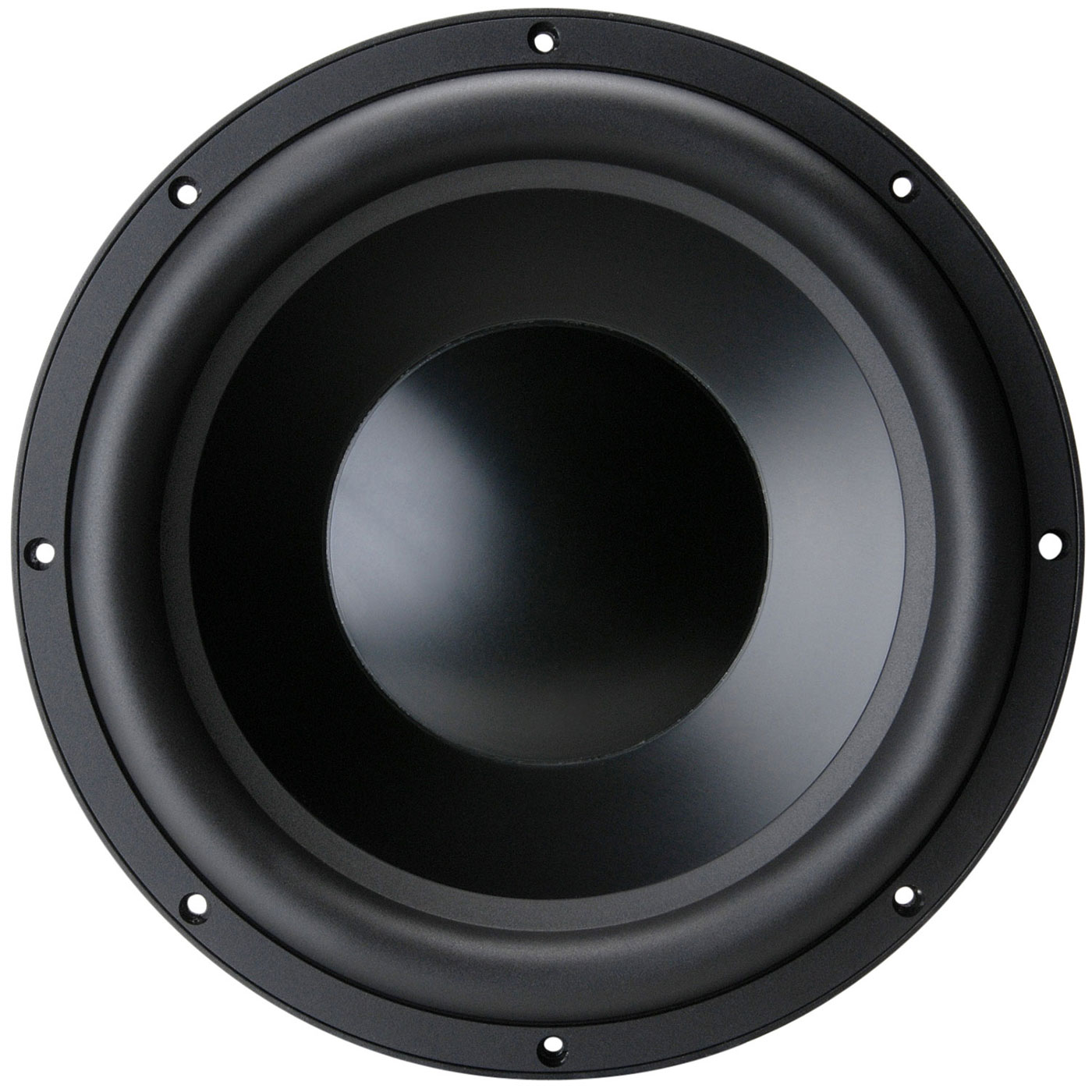

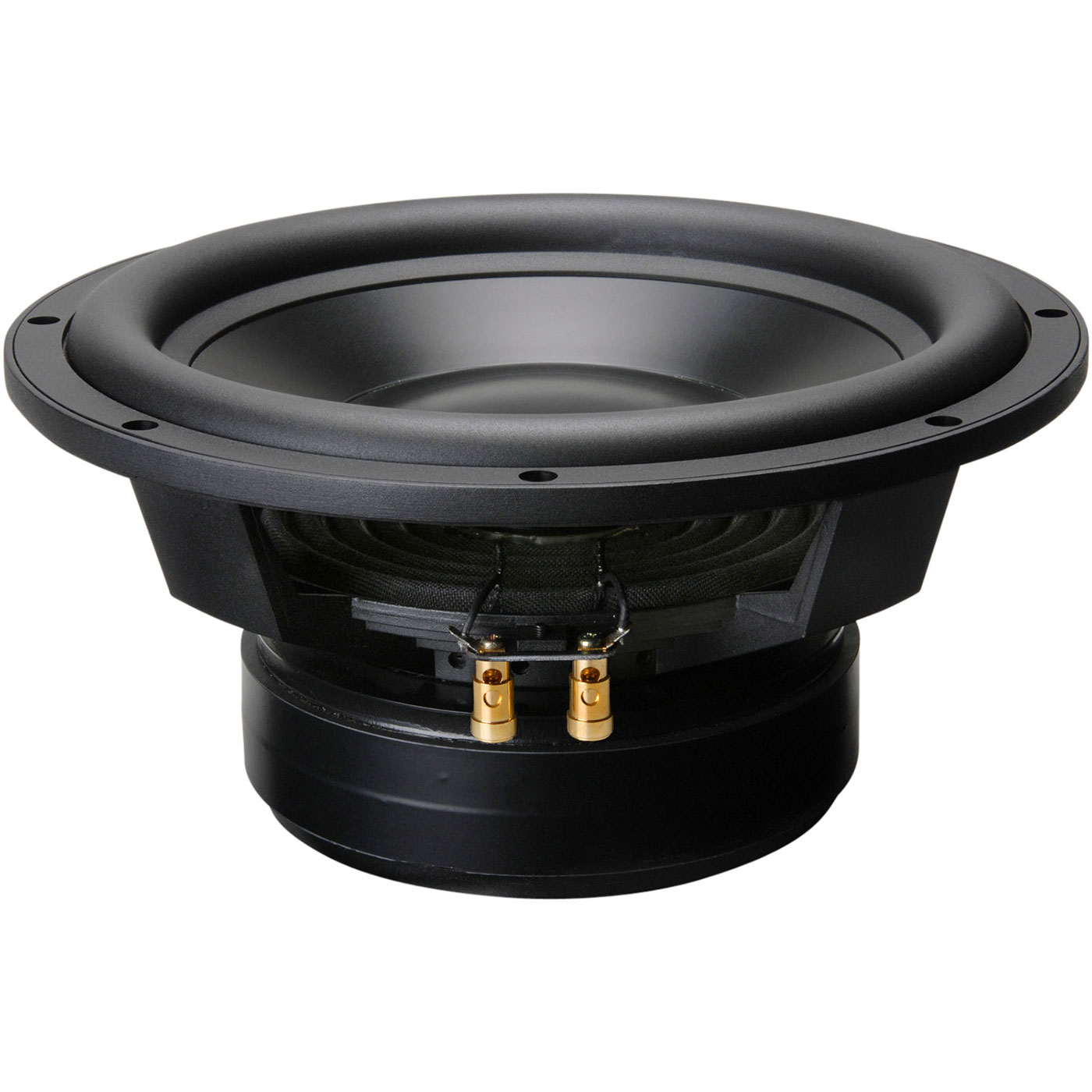

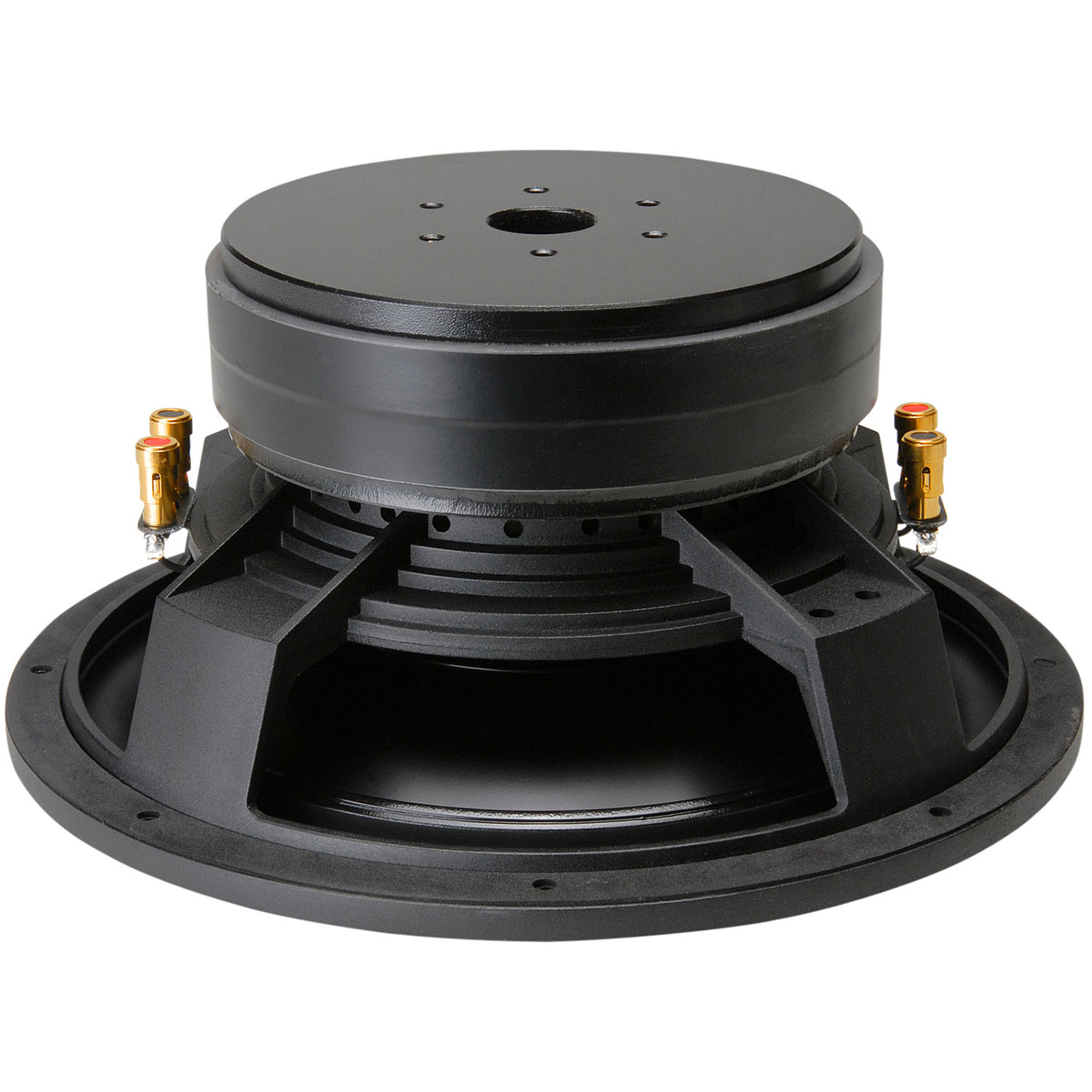

Dayton Audio RSS315HO-44 12” Reference HO DVC Subwoofer
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion.
Key Features
- Dual 4 ohm voice coils
- Extensively vented motor eliminates compression and allows quiet excursion
- Extra-thick black anodized aluminum cone for maximum rigidity
- Triple shorting-ring motor for ultra-low distortion
- 4-layer coil for high power handling
- Parameters optimized for small enclosures
- Highest quality materials throughout for long-lasting performance
Dayton Audio RSS315HO-44 12" Reference HO DVC Subwoofer
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. The High Output (HO) drivers are optimized for automotive applications and equalized high-power home subwoofers.
| Artikel-Nr.: | 295-467 |
|---|---|
| Außenmaß: | 313,9mm |
| Bohrlochanzahl: | 8 |
| DC Resistance (Re): | 6,5 Ohm |
| EAN: | 844632087714 |
| Eff. Membranfläche (Sd): | 507,1cm² |
| Effektive Bewegte Masse (Mms): | 327,7g |
| Einbautiefe: | 146,1 mm |
| Einbauöffnung: | 282 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 0,41 |
| Frequenzbereich: | 20 bis 500Hz |
| Gesamtgüte (Qts): | 0,37 |
| Größe: | 12 " |
| Impedanz (Z): | 2x4 Ohm |
| Korbmaterial: | Aluminium Guss |
| Kraftfaktor (BL): | 26,5T·m |
| Lineare Auslenkung (Xmax): | 14mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 3,7 |
| Membranmaterial: | Aluminium |
| Modell: | RSS315HO-44 |
| Nachgiebigkeit (Cms): | 0,17mm/N |
| Nennbelastbarkeit: | 700 Watt |
| Resonanzfrequenz (fs): | 21,5Hz |
| Schwingspulendurchmesser: | 65,5 mm |
| Schwingspulenind. (Le): | 3,17mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 84,6dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 61,306 l |
