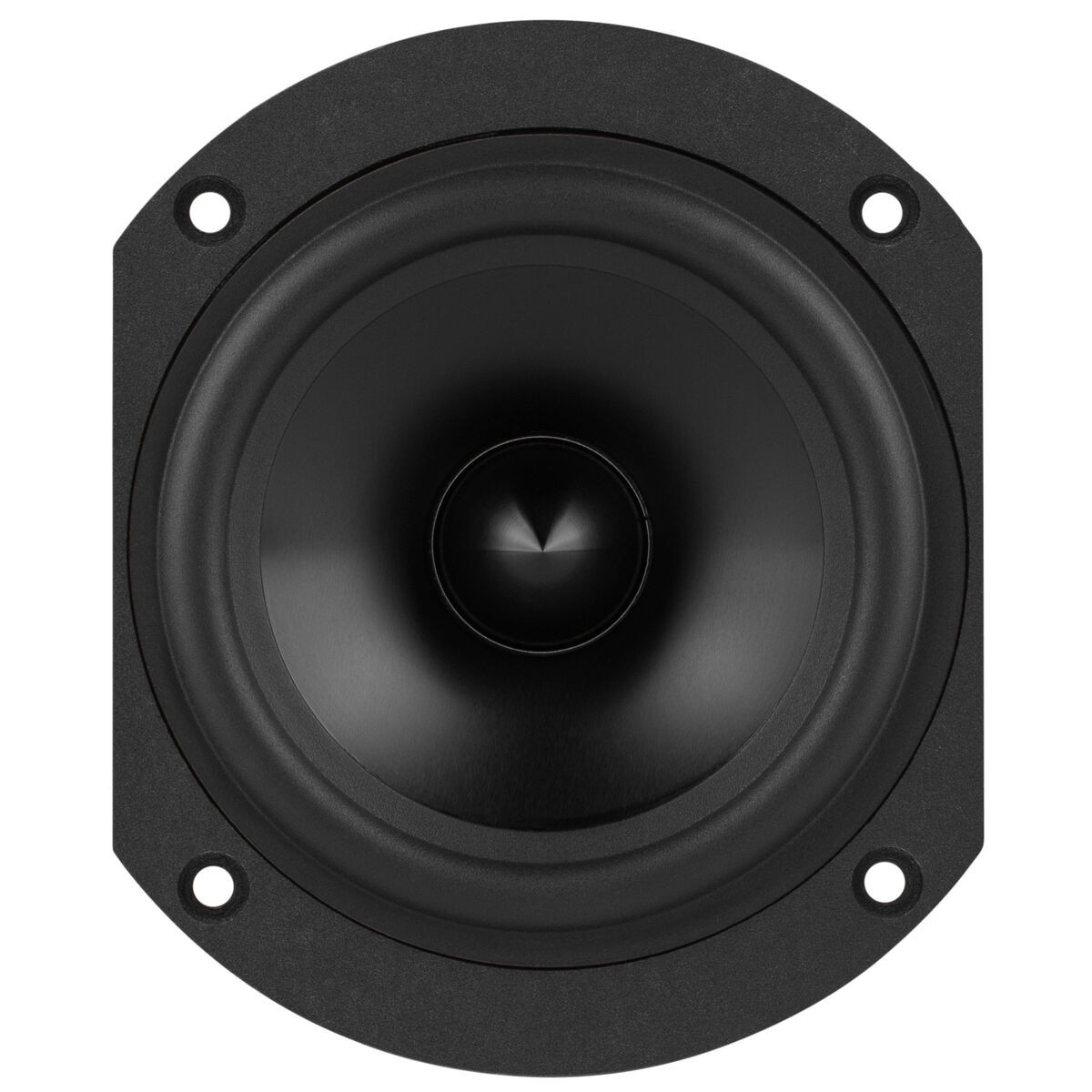

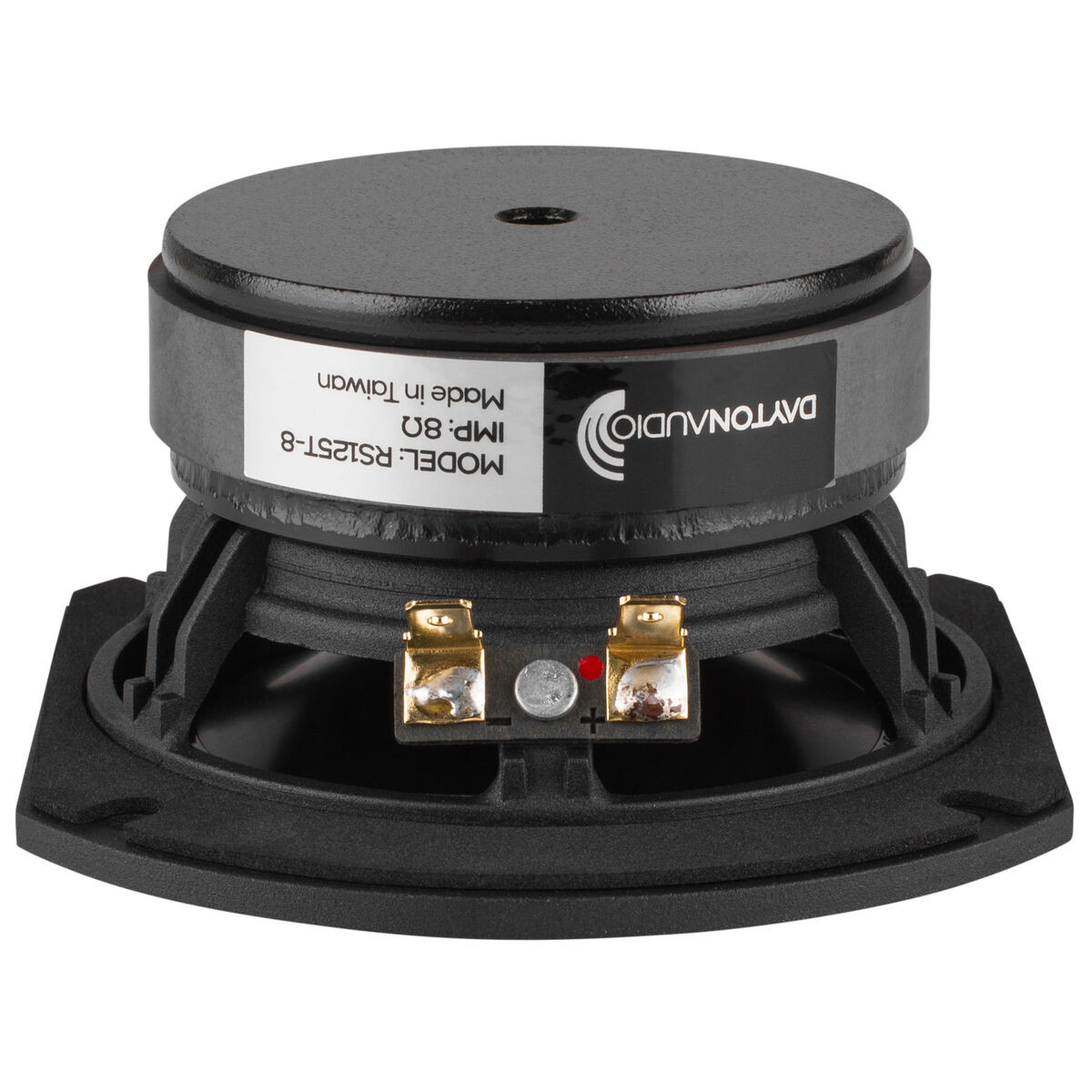

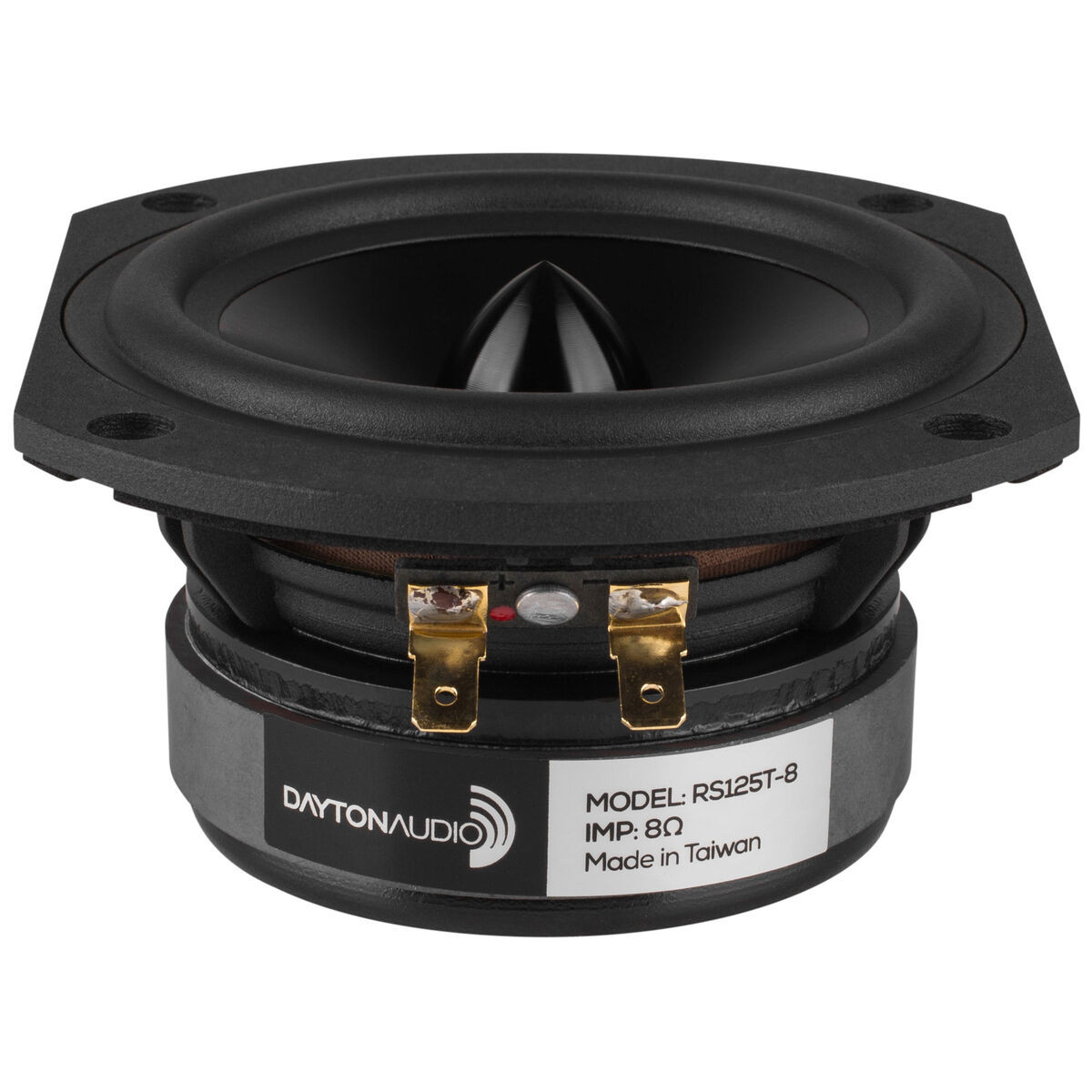

Dayton Audio RS125T-8 5" Reference Woofer Truncated Frame
€56.45
Available in 14 days, delivery time 1-3 days
Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.
Key Features
- Truncated cast frame, great for line arrays and MTM speaker designs
- Long-excursion motor and suspension for strong bass performance
- Advanced low-distortion motor design
- Distortion-reducing copper ring in magnetic gap
- Lightweight black anodized aluminum cone
- Designed and engineered in the U.S.A.
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty cast frame, low-loss rubber surround, solid aluminum phase plug, distortion-reducing magnetic gap copper ring, rubber magnet boot, and gold terminals.
| Artikel-Nr.: | 295-340 |
|---|---|
| Außenmaß: | 125,5mm, across flats 103,1mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 6,4 Ohm |
| EAN: | 844632079795 |
| Eff. Membranfläche (Sd): | 54,1cm² |
| Effektive Bewegte Masse (Mms): | 51 |
| Einbautiefe: | 55,1 mm |
| Einbauöffnung: | 94 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 61 |
| Frequenzbereich: | 75 bis 9,200Hz |
| Gesamtgüte (Qts): | 5 |
| Größe: | 5 " |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Aluminium Guss |
| Kraftfaktor (BL): | 5,04T·m |
| Lineare Auslenkung (Xmax): | 2,8mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 262 |
| Membranmaterial: | Aluminium |
| Modell: | RS125T-8 |
| Nachgiebigkeit (Cms): | 0,87mm/N |
| Nennbelastbarkeit: | 30 Watt |
| Resonanzfrequenz (fs): | 76Hz |
| Schwingspulendurchmesser: | 25,4 mm |
| Schwingspulenind. (Le): | 0,58mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 86,9dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 3,681 l |
