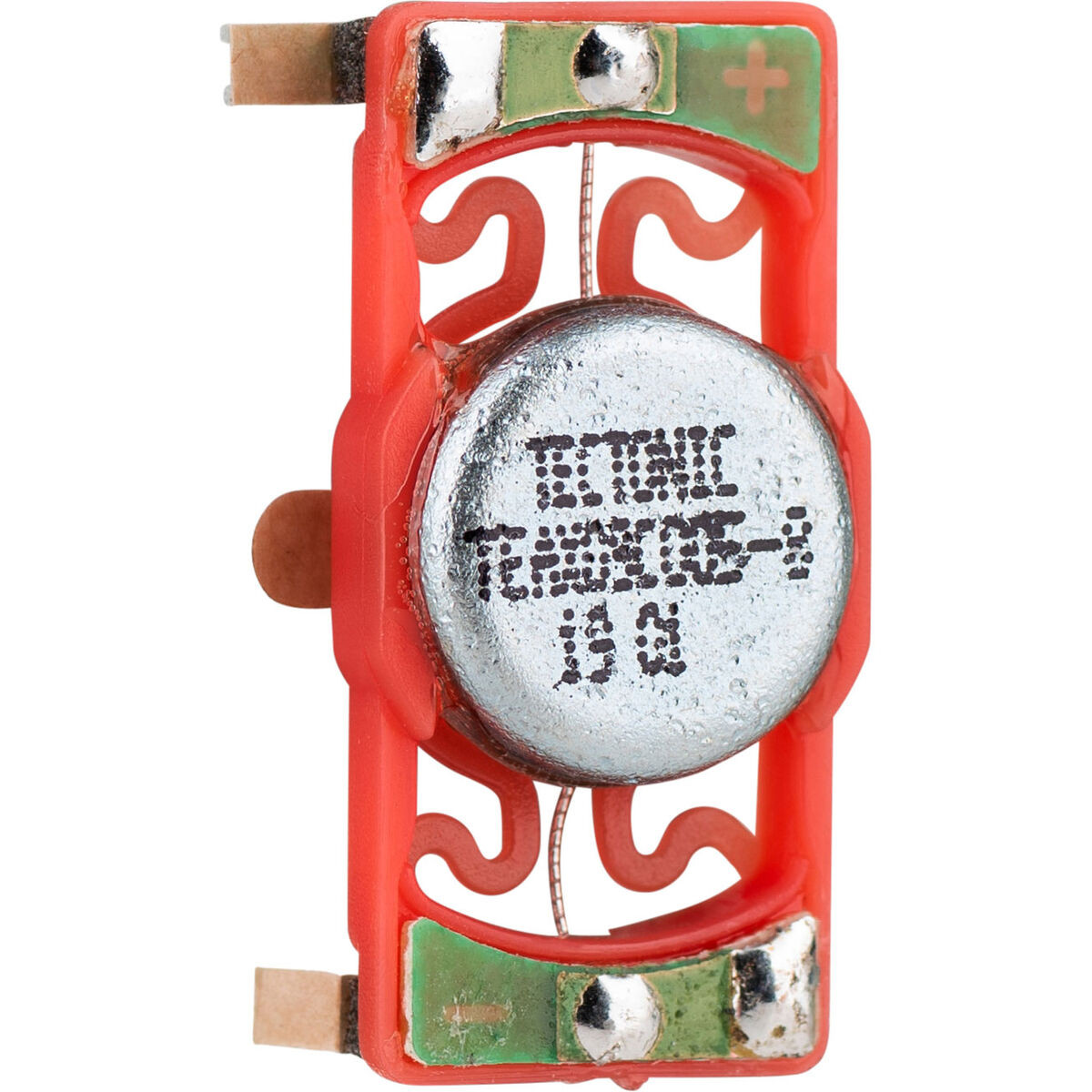

Tectonic TEAX09C005-8 Haptic Feedback Transducer 9mm 0.5W 8 Ohm
Tectonic 9 mm, 8 ohm TEAX09C005-8 miniature exciter is designed be used with tablet PCs, eBooks, and appliance control panels. Bending waves, and sound, generated by the TEAX09C005-8 brings life to devices.
Key Features
- Popular for use with appliance controls
- Great for use on tablet PC and e-Book reader touchscreens
Designed to be used with tablet PCs, eBooks, and appliance control panels, the bending waves generated by the TEAX09C005-8 brings life to devices. 3M adhesive is pre-applied for permanent device attachment, and the 6 mm (under 1/4") thickness is enhanced by a neodymium motor to accommodate into existing designs.
Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.
Specifications: • Power handling: 0.5W RMS, 1W max • Nominal impedance: 8 ohms • Dimensions (H x W x L): 6 x 12 x 26 mm.
| Impedanz (Z): | 8 Ohm |
|---|---|
| Nennbelastbarkeit: | 0,5 Watt |
