CSS Audio SDX10
Skip image gallery
Picture similar to product
Product number:
CSS1124
Manufacturer:
CSS Creative Sound Solutions
Weight:
14 kg
Available stock:
2
Min. order quantity:
1

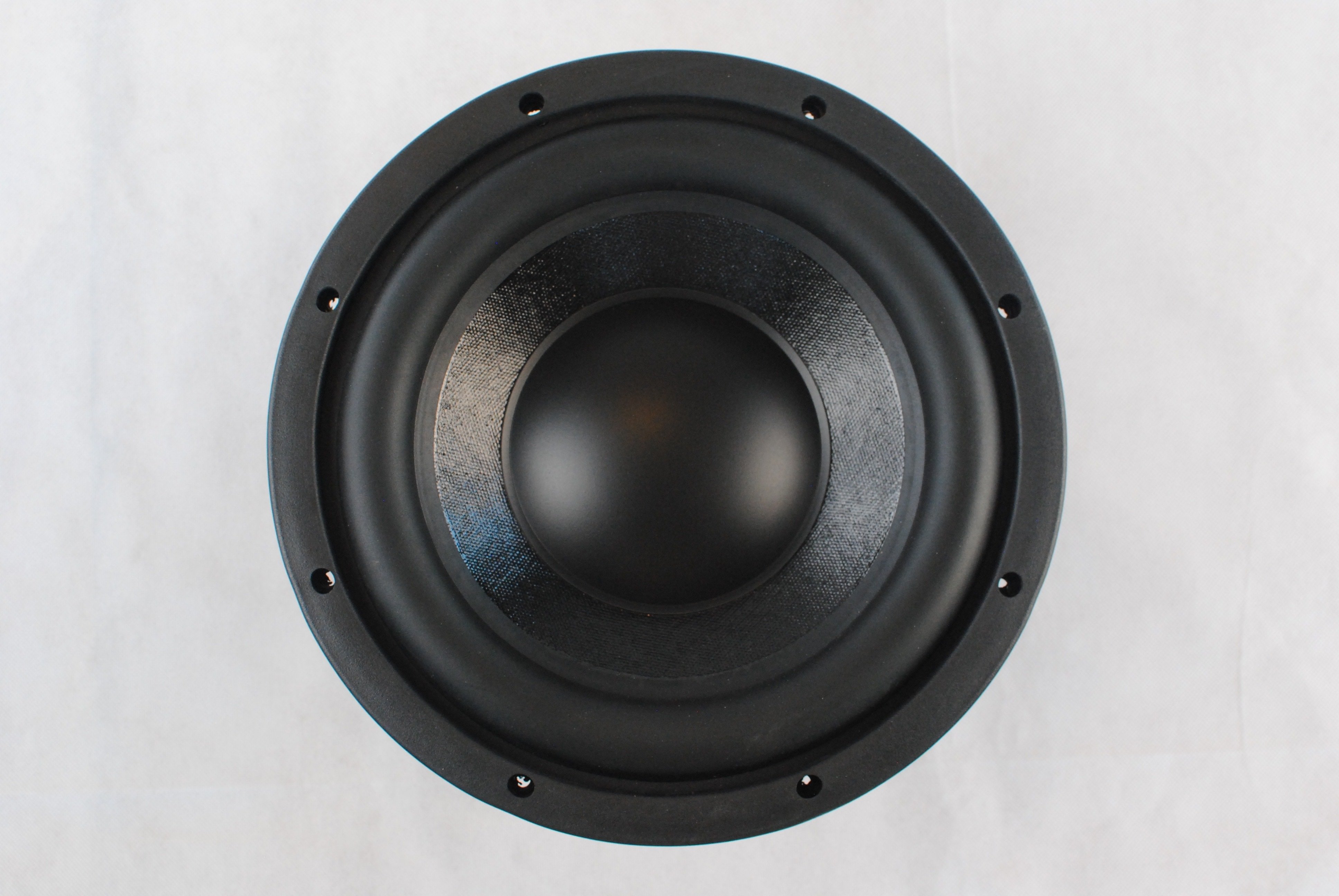

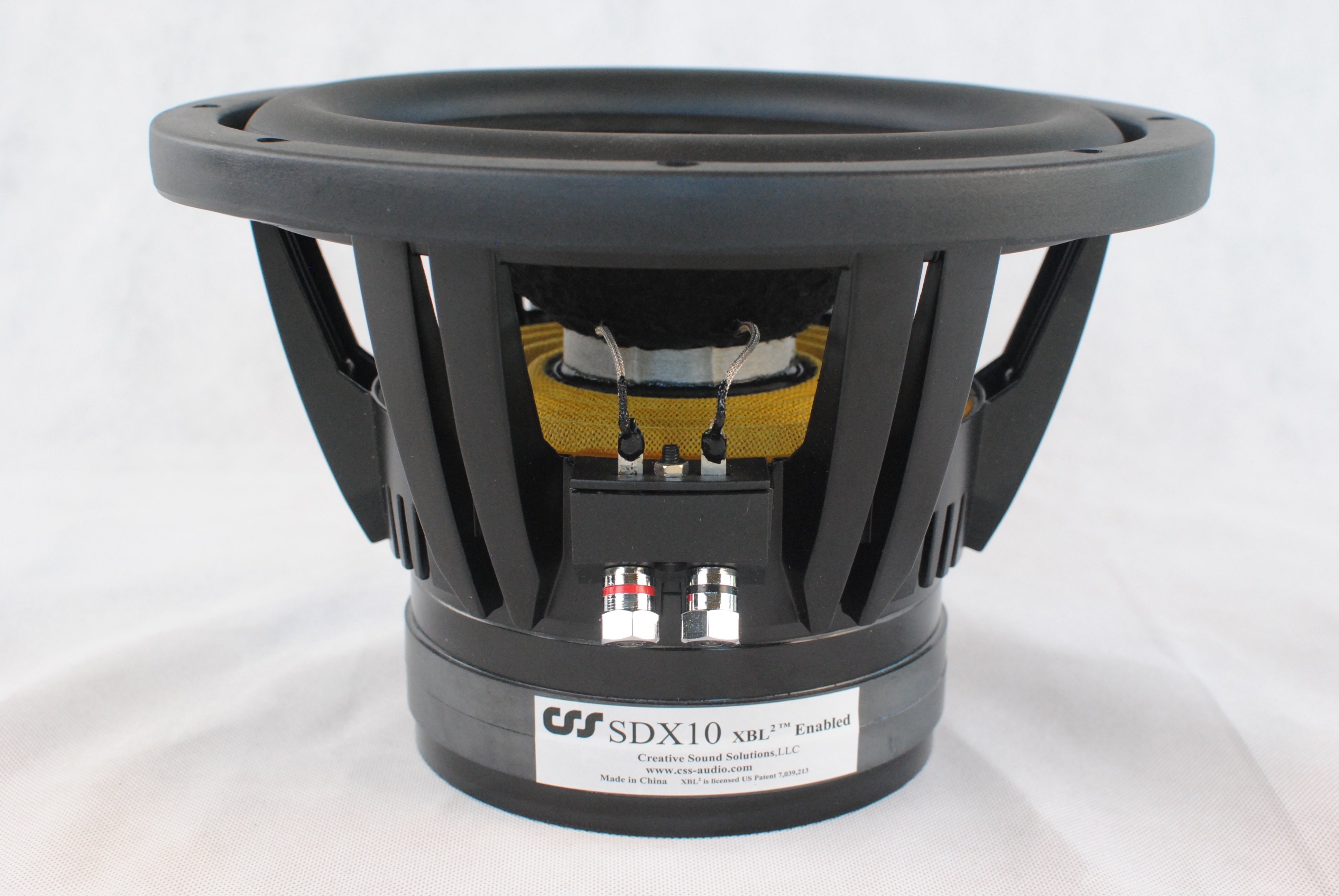

CSS Audio SDX10
Exactly like the SDX12, the SDX10 is also powered by a patented XBL² motor, making it part of
the most precise 25cm (10 inch) long-throw woofers available. With the XBL² motor, the SDX10,
exactly like its bigger brother, with extremely low distortion values and thus enables a rare
belonged to clear and nuanced bass reproduction. An Xmax of 36 mm (peak-to-peak) enables above that
hinaus maximum dynamic capability.
Features
- Carbon fiber reinforced paper diaphragm for high stiffness and good internal damping properties
- Semi-progressive centering for better linearity
- Butyl Rubber Surround
- Aluminum and copper short-circuit rings for low distortion values and minimal inductance rise
- Die casting basket
- High power, XBL² Motor
- 6-layer 60.6mm voice coil diameter
- 750W RMS, 1500W Peak thermal load capacity
Parameter
Fs: 26.0Hz
SPL: 89 dB @ 2.83V/1M
Nom Imp 4 ohm
Re: 3.5 Ohms
Mms 112 g
BL: 11.8 NA
Vas: 53 Liters
Qes: 0.47
Qms: 4.0
Qts: 0.42
Le: 1.42 mH
Xmax: 18.4 mm
Sd: 330 cm²
